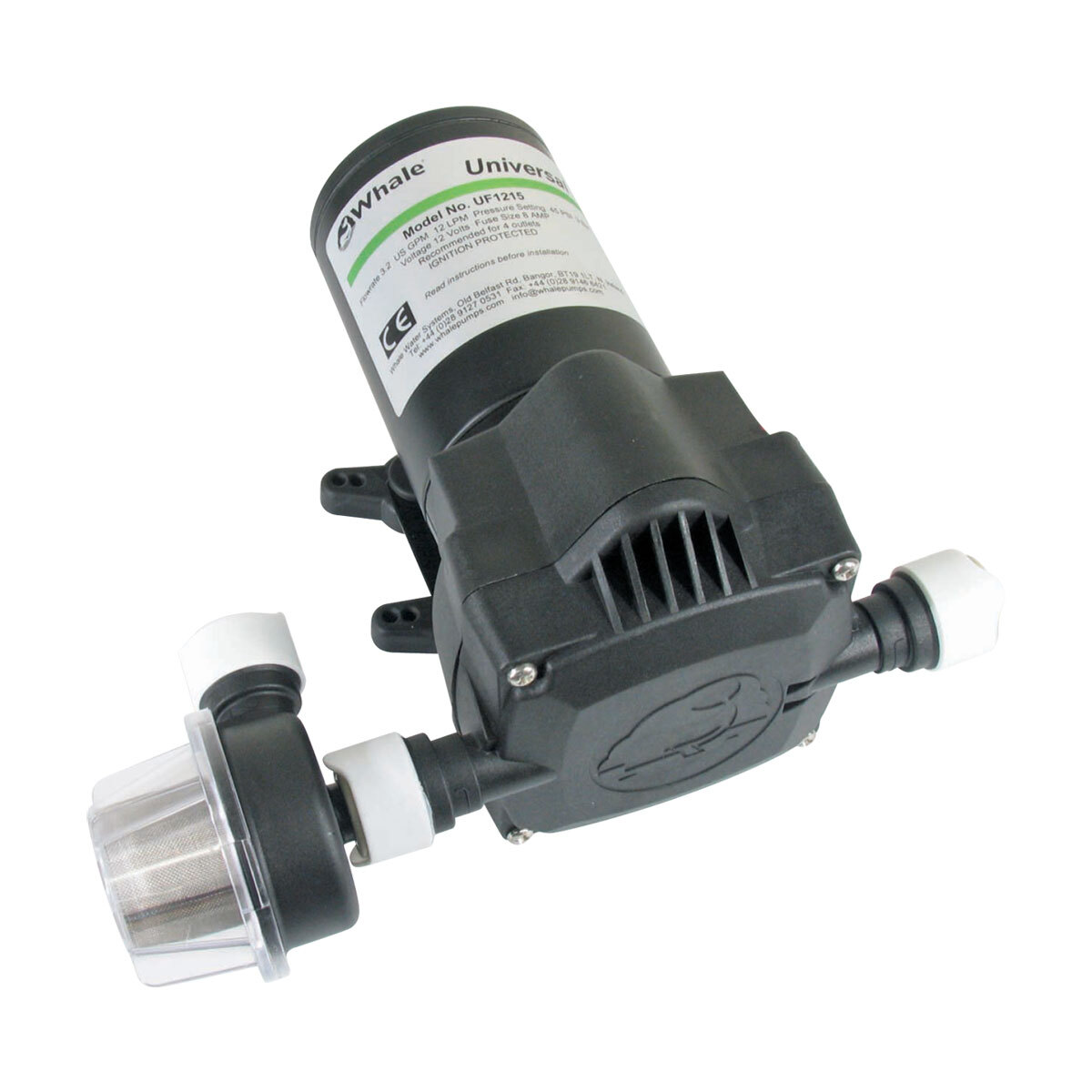

Whale® Universal Pressure Pumps - BLA 12v 2.2gpm 1-2 outlets 133229
Supplied with Quick Connect inlet and outlet for fast connection directly to System 15 plumbing. Includes pre-strainer/filter that pivots to suit plumbing direction. 2 x 13mm barbed hose connections and 2 x 1/2″ BSP threaded tails also included for connection to non Quick Connect 15 plumbing.
Features
• Probably the marine world’s quietest range of pressure pumps
• A range of models for two, four and six outlet or wash down application in 12 or 24 volts
• Capacity of 8, 12 and 18 litres per minute
• Universal mounting feet arrangement fits almost any existing pressure pump mount hole configuration
• Suitable for use with fresh or saltwater
• Smooth constant flow
• Can be run dry without damage
• Extra protection and safety with wires and pressure switch housed internally
• Self priming up to three metres
• Aluminium motor housing
• Run indicator wire allows tell tale light and/or buzzer to operate remotely
Pump Head Materials
• Glass filled polypropylene, neoprene, nitrile, stainless steel, butyl
| BLA Code | Volt | Capacity L/m | Capacity GPM | No. of Outlets | Max Head m | Lift m | Cut Out Pressure bar | Cut Out Pressure psi |
|---|---|---|---|---|---|---|---|---|
| 133229 | 12 | 8 | 2.2 | 1-2 | 10 | 3 | 1 | 15 |
| 133230 | 12 | 8 | 2.2 | 2-3 | 30 | 3 | 3 | 45 |
| 133234 | 12 | 12 | 3.2 | 3-4 | 30 | 3 | 3 | 45 |
| 133233 | 24 | 12 | 3.2 | 3-4 | 30 | 3 | 3 | 45 |
| 133235 | 12 | 18 | 4.8 | 4-6 | 30 | 3 | 3 | 45 |
| 133236 | 24 | 18 | 4.8 | 4-6 | 30 | 3 | 3 | 45 |
Accessories
133251 Replacement pump head assembly
133252 Filter assembly
130370 Replacement Microswitch
(B-P-133229)
| SKU | B-P-133229 |
