Battery Switch 4 Position w/Key 114296

$63.00
RRP $85.90
SAVE $22.90 (27%)
In Stock (11 ) - Ships in 1 day


Calculate Shipping

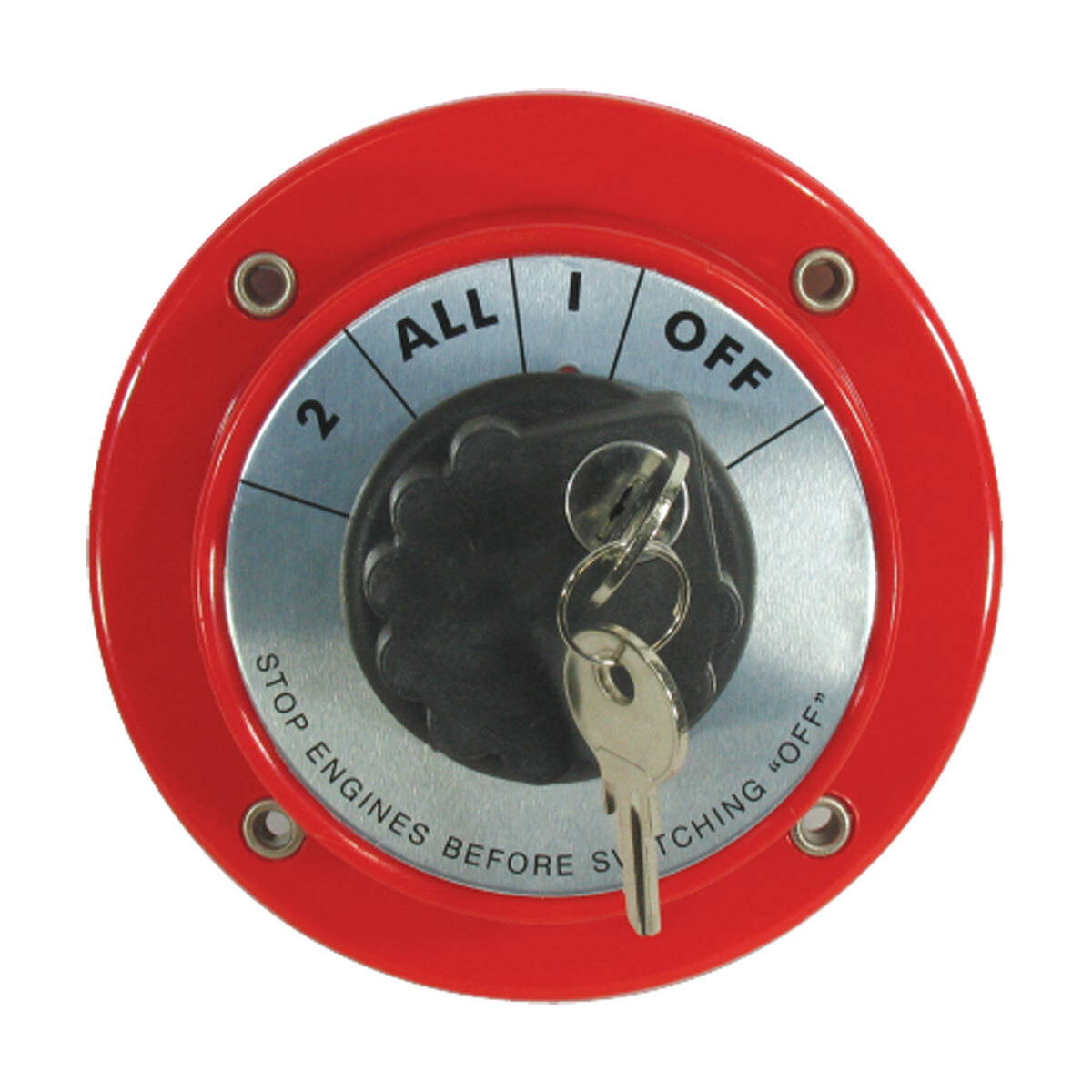

Battery selector switch with key lock providing added security to engine starting. Four position options enable isolation of one battery or battery bank from the other. Also provides the ability to link both batteries in parallel. The unit can be surface or partially recess mounted.

Specifications
• Voltage 6-32V DC
• Continuous Rating 250amps DC
• Intermittent Rating 360amp DC

BLA CODE
BASE DIA. MM CUT OUT DIA. MM OVERALL DEPTH MM MOUNT SCREWS MM TERMINAL STUD MM
114294 134 96 70 5 r/h 8

(B-114296)

SKU B-114296
Barcode # 9319786268537
Brand BLA
Shipping Weight 0.3200kg
Shipping Width 0.207m
Shipping Height 0.075m
Shipping Length 0.157m
Unit Of Measure ea
