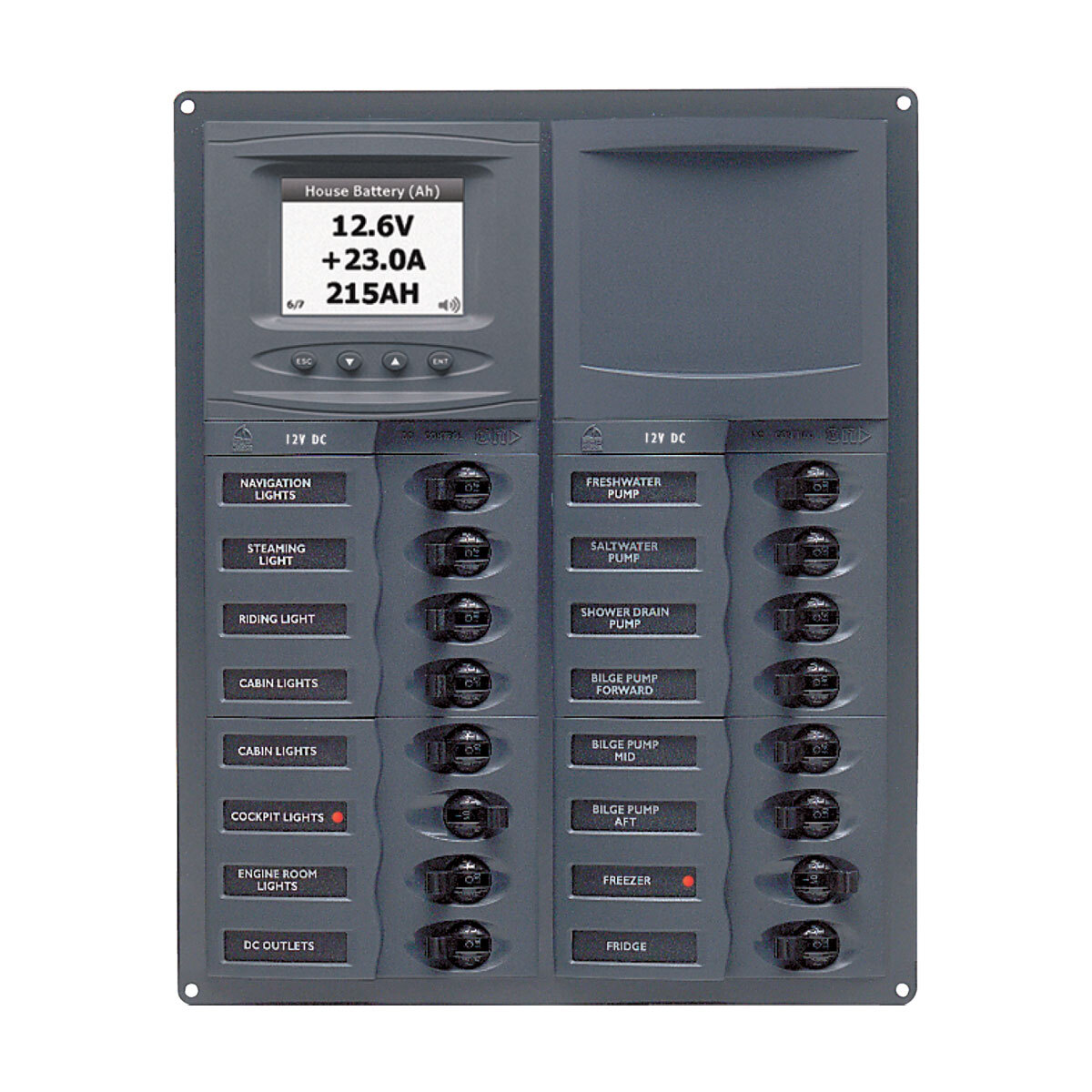

BEP 'Contour' Circuit Breaker Panels - with Digital Meters 113150
12 Circuts
Circuit breaker panels with stylish curved front facia incorporating recesses for circuit breaker toggles preventing them from being switched on accidentally.
Digital panel functions include volts for up to three battery banks and current discharge/charge as well as ampere hours used and remaining for two banks. The digital meter can also be used as a tank monitor.
Features
•Durable grey powder coated marine grade aluminium base panel
•Marine quality, magnetic, hydraulic, UL listed trip free breakers
•Backlit labels supplied, refer page 156
•Suitable size negative busbar supplied, refer page 183
•1x 450A/50mA shunt supplied, refer page
•Red LED indication for circuits ‘on’
•Green LED back lighting for meters and labels
•Double pole configurations available for survey or additional safety
•DC digital meters – 200 mV sensitivity, 1% accuracy including alarms. 12mm high numerals
With the flexibility of the ‘Contour’ four way plastic modules, BEP can build panels to custom requirements if requested.
| BLA Code | Circuits | Overall Size W x H mm | Cut Out Size W x H mm | Intrusion mm | Mount Screws Gauge | Power Volt | Label Sheet | Circuit Breakers 5 amp | 10 amp | 15 amp | 20 amp | 25 amp | 30 amp |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 113147 | 12 | 127 x 380 | 107 x 360 | 65 | 6 r/h | 12-24 | 1 | 3 | 4 | 4 | - | 1 | - |
| 113150 | 12 | 239 x 200 | 219 x 180 | 65 | 6 r/h | 12-24 | 1 | 3 | 4 | 4 | - | 1 | - |
| 113158 | 16 | 239 x 295 | 219 x 275 | 65 | 6 r/h | 12-24 | 1&2 | 4 | 5 | 5 | 1 | 1 | - |
| 113166 | 20 | 351 x 200 | 331 x 180 | 65 | 6 r/h | 12-24 | 1,2&3 | 5 | 6 | 7 | 1 | - | 1 |
| 113174 | 24 | 351 x 295 | 331 x 275 | 65 | 6 r/h | 12-24 | 1,2&3 | 5 | 8 | 8 | 1 | 1 | 1 |
| 113194 | 24 | 239 x 385 | 219 x 365 | 65 | 6 r/h | 12-24 | 1,2&3 | 5 | 8 | 8 | 1 | 1 | 1 |
(B-P-113147)
| SKU | B-P-113147 |
