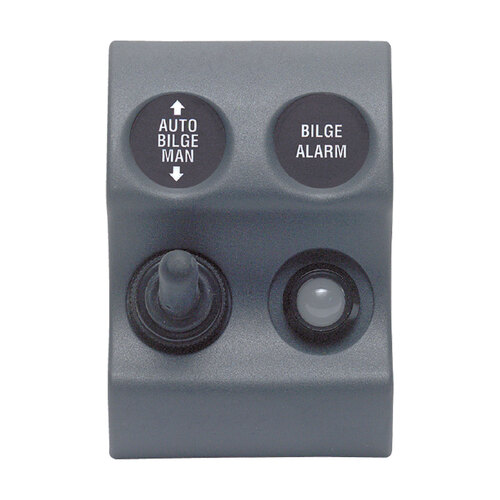

BEP Micro Series Panel113292
Black Bilge alarm visual & audible
The micro range of switches offer the unique ability to select the size and orientation of switch panels by adding the compact modules together horizontally or vertically. Injection moulded plastic panel with high quality toggle switches covered by a neoprene rubber boot combined with LED indicator lights, mix and matched to suit most applications. Contour design protects from accidental switching. Supplied with one label set as per table. Labels are round to suit installation vertically or horizontally. Suitable for 12 volt systems only. Switches rated to 20 amp. Labels are back lit with green LED, changing to red when system on. Face 58 x 86mm, cut out 48 x 60mm, intrusion 28mm.
| Code | Colour | Labels | Description | |||
|---|---|---|---|---|---|---|
| 113280 | Black | 113717 | 2 x On/off toggle switch | |||
| 113282 | White | 113717 | 2 x On/off toggle switch | |||
| 113284 | Black | 113718 | 1 x 2 way & 1 x 3 way momentary switch | |||
| 113288 | Black | 113717 | 1 x 2 way & 1 x 3 way switch | |||
| 113292 | Black | Fitted | Bilge alarm visual & audible |
Accessories
113471 On/off/on switch
113472 On/off switch
113473 (on)/off toggle switch
113491 Rubber Boot
115714 Fuse Holder
113520 Dual 6mm insulated stud
(B-P-113280)
| SKU | B-P-113280 |
| Brand | BEP |
| Unit Of Measure | ea |
