BLA Lithium Battery - Performance iSeries

Calculate Shipping

Description
Specifications

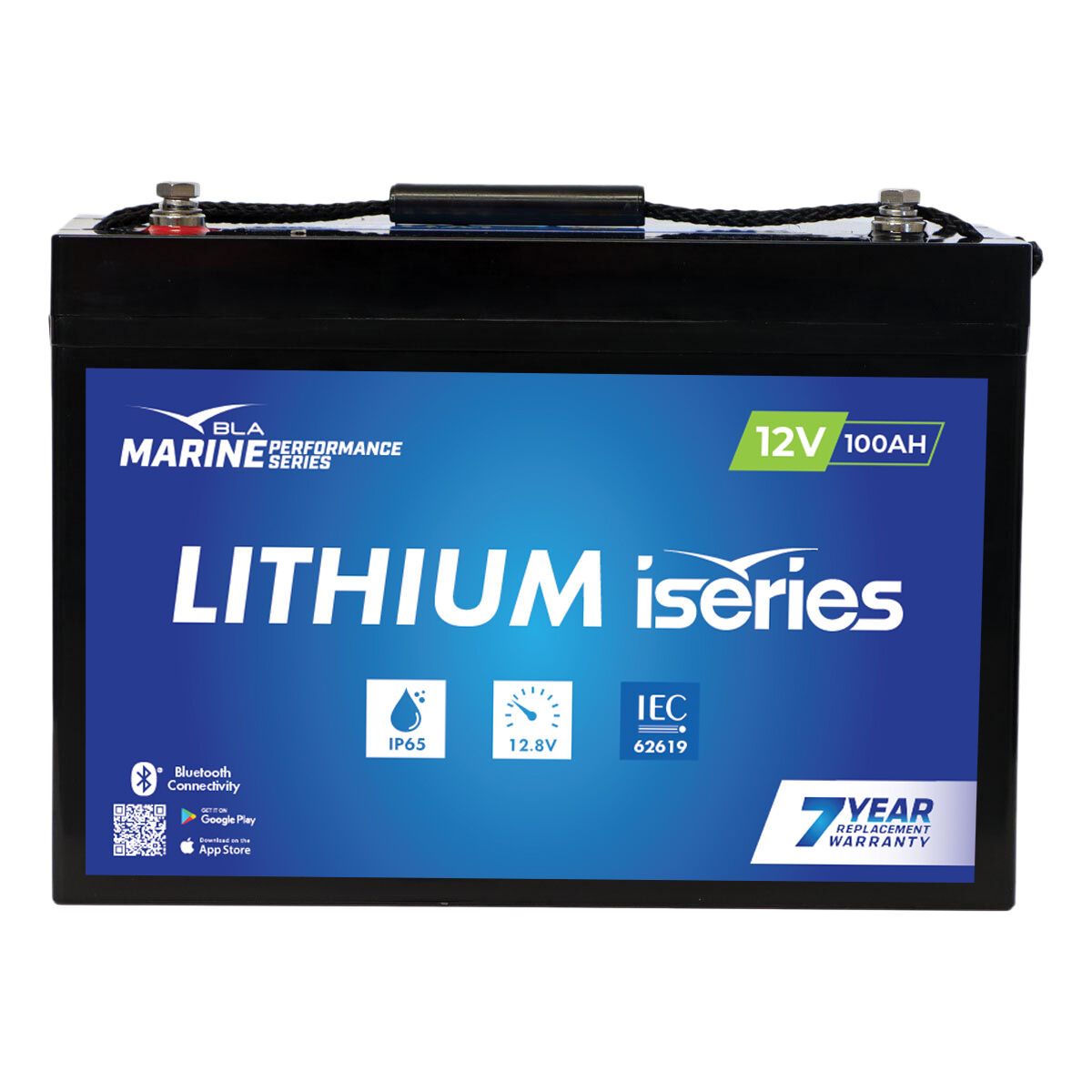

The all new BLA Marine Performance iSeries Lithium is a premium range of batteries consisting of the highest quality Lithium Ion Phosphate (LiFePO4) composition and now with an IP65 rating and improved bluetooth connectivity. BLA Marine Performance iSeries Lithium range comes with all the benefits you expect from using LiFePO4 while being conveniently designed into standard Sealed Lead Acid (SLA) case sizes for easy replacement. With up to 8 times the cycle life of standard SLA technology BLA Marine Performance iSeries Lithium will lower your total cost of ownership and provide you with the latest in battery technology.

Features:

• IEC Certification
• High energy density (less than half the weight of SLA) lowering total weight of application
• Fast recharge, battery is charged and ready to be used sooner
• Flat discharge curve, longer run time and more efficient use of capacity
• Large numbers of cycles >2000 (100% DoD), up to 8 times cycle life of SLA lowering your total cost of ownership
• Safe and stable chemistry and integrated BMS, the use of LiFePO4 along with integrated BMS ensures protection against over charge/discharge, temperature and short circuit providing the highest degree of safety.
• Bluetooth versions available, monitor the health and state of your battery from your phone
• Greater capacity utilisation 60% more than SLA, gives longer runtime than equivalent SLA
• IP65 waterproof rating
• New improved Bluetooth app to provide more visibility on battery performance

Specifications :

	111230	111234	111238
Description	BLA PERFORMANCE SERIES LITHIUM BATTERY 12V 100AMP BT ISERIES	BLA PERFORMANCE SERIES LITHIUM BATTERY 24V 100AMP BT ISERIES	BLA PERFORMANCE SERIES LITHIUM BATTERY 36V 100AMP BT ISERIES
Nominal Capacity	100A	100A	100A
Nominal Voltage	12.8V	25.6V	38.4V
Terminal Size	M8
Max. Charge Voltage	14.6 ± 0.1V	29.2 ± 0.1V	43.8 ± 0.1V
Standby Voltage	13.8 ± 0.1V	27.8 ± 0.1V	41.4 ± 0.1V
Cut Off Voltage	10V	20V	33.6V
Max. Discharge Current	100A	100A	100A
Max. Charge Current	100A	100A	100A
Battery Length	306 ± 2mm	485 ± 2mm	520 ± 2mm
Battery Width	168 ± 2mm	170 ± 2mm	269 ± 2mm
Battery Height (Top of Terminals)	216 ± 2mm	245 ± 2mm	220 ± 2mm
Battery Weight	12.2kg ± 0.3kg	20.0kg ± 0.3kg	32.2kg ± 0.3kg
Cycle Life (100% DoD)	≥ 2000	≥ 2000	≥ 2000
Operating Temp - Charge	0 - 50°C	0 - 50°C	0 - 45°C
Operating Temp - Discharge	-20 - 55°C	-20 - 55°C	-20 - 60°C
Short Circuit Release	Load Release
Max. Series/Parrel Configuration	4P
Communication	Bluetooth
Certification	IEC62619
IP Rating	IP65
Package Dimensions	430 x 258 x 300mm	545 x 235 x 305mm	562 x 322 x 290mm
Package Weight	13.44kg ± 0.3kg	21.25kg ± 0.3kg	33.8kg ± 0.3kg
