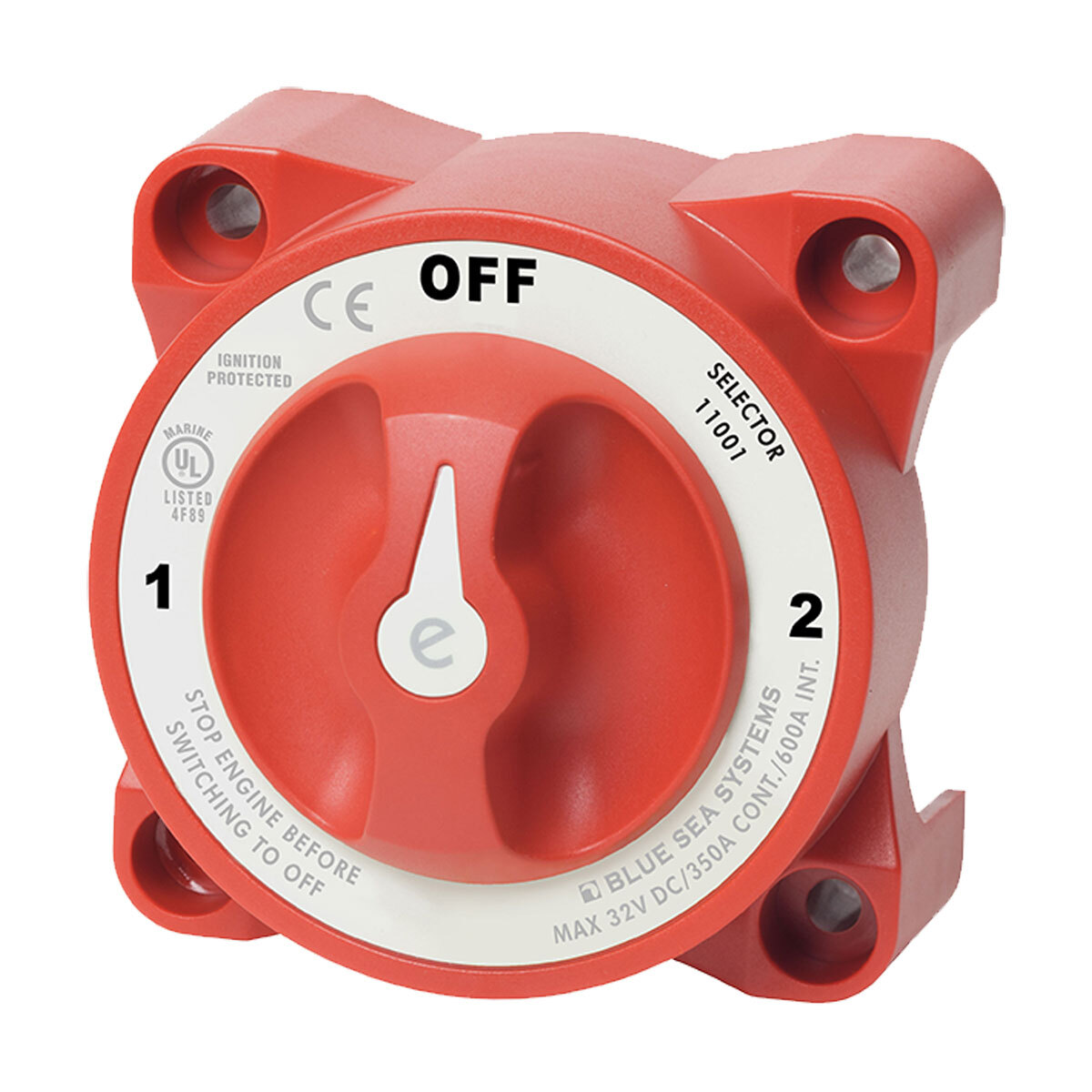

Blue Sea System® E Series Battery Switch - Dual Circuit & Dual Circuit Plus BS-11001
350 Amps continuous rated battery switches for simultaneously switching two isolated battery banks or circuits BS-5510E- Simultaneously switches two isolated battery banks or circuits. May be used to switch the positive and negative conductors for required applications BS-5511E(B)- Simultaneously switches two isolated battery banks or combines battery banks to all loads. CAN NOT be used to switch and positive conductors due to its combine feature.
Features
• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Accepts up to 4/0 AWG (120 mm²) battery cables
• Studs accept 3/8″ (M10) ring terminals
• Fits most Perko and Guest low amperage battery switch hole patterns
| BLA Code | BS-9001E | BS-9002E | - | - | BS-11001 | BS-5510E | BS-5511E |
|---|---|---|---|---|---|---|---|
| Bulk BLA Code | BS-9001EB | - | BS-9003EB | BS-9004EB | BS-5511EB | ||
| Description | Switch Battery e Selector | Switch Battery e Selector w/AFD | Switch Battery e ON/OFF | Switch Battery e ON/OFF w/AFD | Selector 3 Position | Dual Circuit™ | Dual Circuit Plus™ |
| Cranking Rating: 30 sec. | 1200A | 1200A | 1200A | 1200A | 1200A | 700A | 700A |
| Intermittent Rating: 5 min. | 600A | 600A | 600A | 600A | 600A | 525A | 525A |
| Continuous Rating | 350A | 350A | 350A | 350A | 350A | 350A | 350A |
| Voltage Max. Operating | 32V DC | 32V DC | 48V DC | 48V DC | 48V DC | 32V DC | 32V DC |
Accessories
BS-7920B Battery Switch Identification Label Set
(B-P-BS-11001)
| SKU | B-P-BS-11001 |
