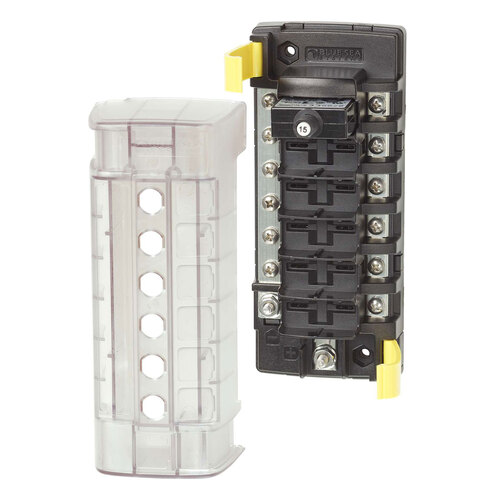

Blue Sea Systems ST-CLB Circuit Breaker Blocks BS-5052B

Compact surface mount solution providing secure screw termination where Push Button Reset-Only CLB Circuit Breakers are desired. For use with Blue Sea Systems CLB circuit breakers with quick connect terminals

Features
• Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
• Quick connect clips allow circuit breakers to snap easily into place
• Tin-plated copper busses and screw terminals
• Breakouts allow wire access in two directions
• Accepts ring terminals
• Optional push button waterproof boots or dress nuts can be installed over cover
• Accepts square labels
• Circuit breakers sold separately
• All circuits have common source
• Integrated negative bus

Specifications
• Voltage Max operating 32VDC
• Amperage Max Operating 32A per circuit, 100A per block
• Breaker Type- Push Button Reset CLB breakers with Quick connect terminals
• Screw Terminals #8-32
