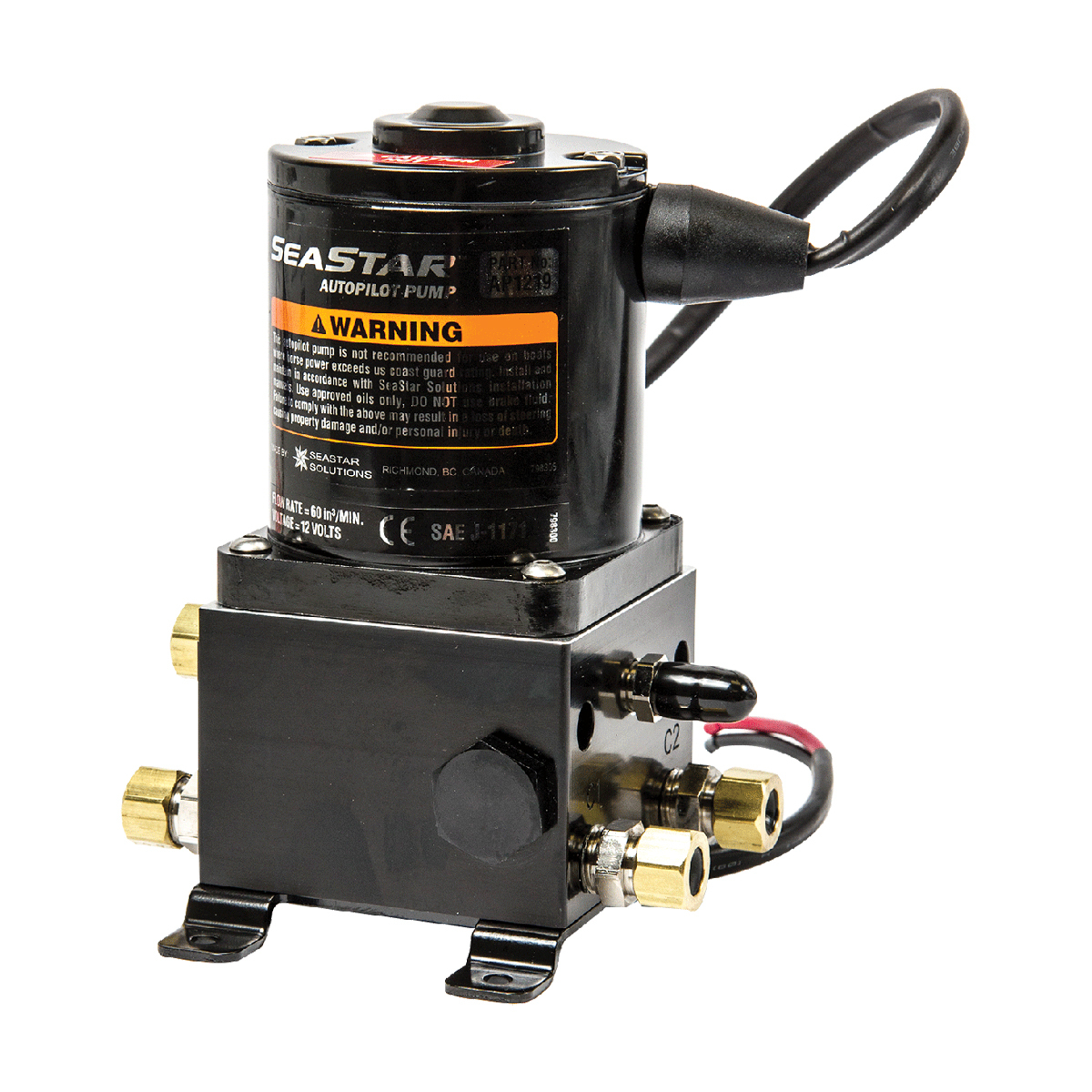

Dometic SeaStar Solutions® Autopilot Pump 295040
Type 1 / AP1219 12volt
The Dometic SeaStar Autopilot pump is a high efficiency, fixed flow, reversible type pump set producing very little vibration or noise. It is offered in 12 and 24 volt configurations, as well as two different pump sizes (type 1 & type 2). It can be used as a stand alone pilot pump or can be mounted to a previously installed Dometic SeaStar Power Assist unit and can prevent the need to break into the hydraulic lines.
Features
• Long life DC Motor (i.e. long life brushes)
• Compact design
• Simplified installation
• Low power consumption
• ABYC, CE and J1171 compliant
• Superior corrosion resistance
• Quiet operation
• Mounting bracket included
• Stand alone or mounts to Dometic SeaStar Power Assist unit
| BLA Code | Description | Volts | Oil Compatibility | Weight kg | Weight lbs | Autopilot Pump Size (no-load) | Maximum Pressure psi | Cylinder Capacity |
|---|---|---|---|---|---|---|---|---|
| 295040 | Type 1 / AP1219 | 12 | Dometic SeaStar Steering Fluid | 2.2 | 4.9 | 60 in³/min | 1000 | 4.9 in³ - 12.5 in³ |
| 295042 | Type 2 / AP1233 | 12 | Dometic SeaStar Steering Fluid | 2.2 | 4.9 | 100 in³/min | 1000 | 12.5 in³ - 21 in³ |
| 295046 | Type 2 / AP2433 | 24 | Dometic SeaStar Steering Fluid | 2.2 | 4.9 | 100 in³/min | 1000 | 12.5 in³ - 21 in³ |
Accessories
• 295048 Pump autopilot mount retrofit kit HA1205
