Honda BF115-150 - 200 Hour Service Kit - 06510-ZVT-010

Genuine Honda 200 Hour BF115-150 Service Kit - 06510-ZVT-010

Keep your Honda outboard engine performing at its best with this Honda Genuine OEM 200-Hour Service Kit, specifically designed for the BF150D, BF135D & BF115J. This essential maintenance package includes critical anodes, fuel system components, and sealing parts to help protect your engine from wear and corrosion during routine 200-hour service intervals.

- Genuine OEM Honda Quality
- Suits Honda Outboards: BF150D, BF135D & BF115J
- Ideal for 200-Hour Service Intervals

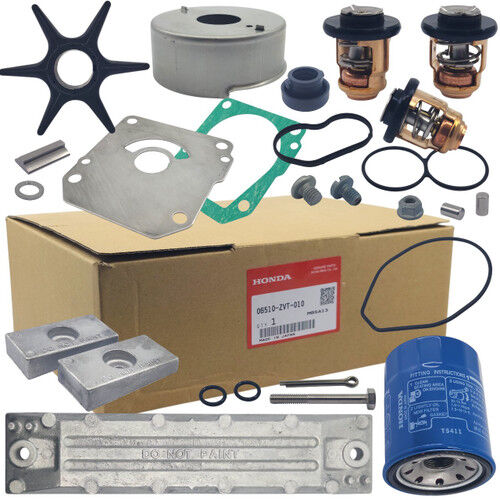

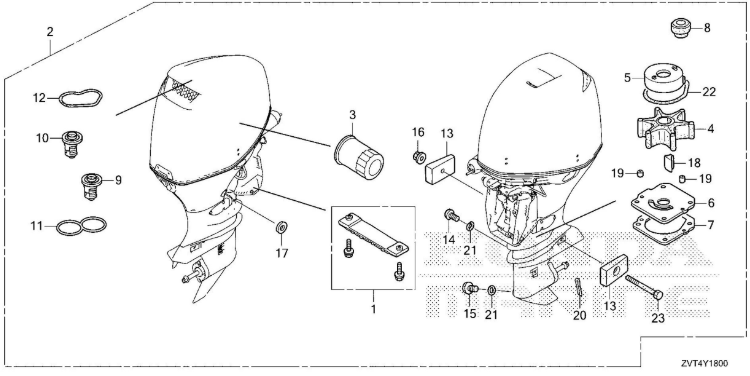

Kit Contents & Quantities:
#1 – 06411-ZW1-020 – Bracket Anode (Includes Bolts) – x1
#3 – 15400-RTA-003 – Oil Filter (S-18-7909) – x1
#4 – 19210-ZW1-B04 – Impeller (HJ-HJB-J-3023 / S-18-3250) – x1
#5 – 19223-ZW1-B00 – Water Pump Cup – x1
#6 – 19231-ZY6-000 – Impeller Plate – x1
#7 – 19234-ZY6-000 – Impeller Plate Gasket – x1
#8 – 19253-ZW1-B01 – Water Pump Tube Seal – x1
#9 – 19300-ZY3-023 – Thermostat – x2
#10 – 19300-ZY6-003 – Thermostat – x1
#11 – 19318-ZY6-003 – Thermostat Cover Gasket – x1
#12 – 19319-ZY6-010 – Thermostat Spacer Gasket – x1
#13 – 41109-ZW1-B00 – Side Pod Anode (CM41109ZW1B00A) – x2
#14 – 90101-ZW9-003 – Oil Check (Fill) Bolt – x1
#15 – 90120-ZY3-000 – Drain Plug Bolt – x1
#16 – 90205-ZY1-000 – M6 Nut – x1
#17 – 90601-ZE2-000 – 12mm Drain Plug Washer – x1
#18 – 90752-ZW1-B02 – Woodruff Key – x1
#19 – 90756-ZVL-000 – Dowel Pin – x2
#20 – 90758-ZW1-B00 – Split Pin (4mm) – x1
#21 – 91301-ZW4-003 – O-Ring (6.9 x 1.45mm) – x2
#22 – 91356-ZW1-B00 – Water Pump O-Ring – x1
#23 – 92101-060504J – Bolt No Flange (M6 x 50mm) – x1
