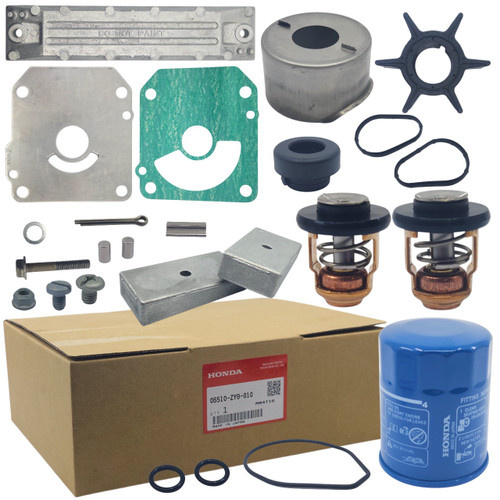

Honda BF75 - 100 - 200 Hour Service Kit - 06510-ZY9-010

Genuine Honda 200 Hour BF75-100 Service Kit - 06510-ZY9-010

Keep your Honda outboard engine running at peak efficiency with the Honda 06510-ZY9-010 Genuine OEM 200-Hour Service Kit. This comprehensive maintenance package is specifically designed to support regular service intervals and includes everything you need to perform a complete 200-hour water pump and cooling system service.

- Genuine OEM Honda Quality
- Suits Honda Outboards: BF75DK4, BF80AK1, BF90DK5, BF100AK1
- Ideal for 200-Hour Service Intervals

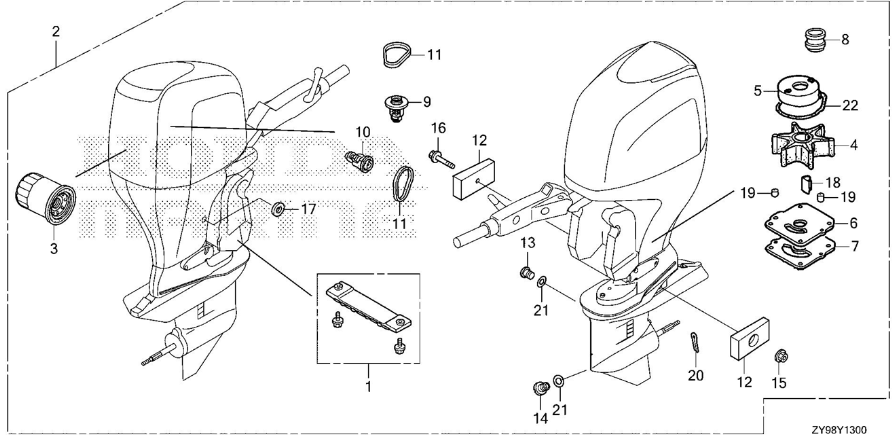

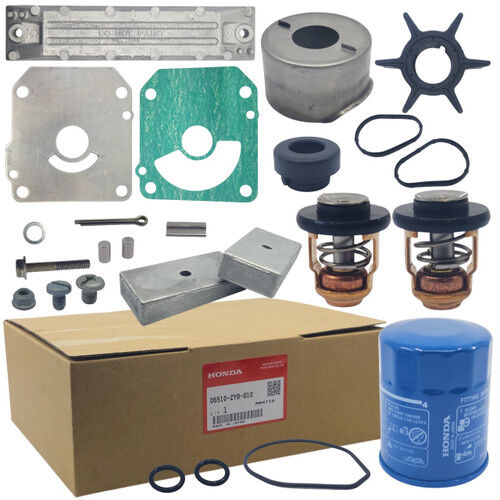

Kit Contents & Quantities:
#2 – 06411-ZW1-020 – Bracket Anode with 2 Bolts (CM06411ZW1A) – x1
#3 – 15400-RTA-003 – Oil Filter (S-18-7909) – x1
#4 – 19210-ZY9-H01 – Impeller (HJ-HJB-J-901) – x1
#5 – 19223-ZY9-H00 – Water Pump Cup – x1
#6 – 19231-ZY9-H01 – Impeller Cover Plate – x1
#7 – 19234-ZW1-B00 – Cover Plate Gasket – x1
#8 – 19253-ZW1-B01 – Water Pump Tube Seal – x1
#9 – 19300-ZW9-003 – Thermostat – x1
#10 – 19300-ZY6-003 – Thermostat – x1
#11 – 19317-ZW9-000 – O-Rings, Thermostat Cover – x2
#12 – 41109-ZW1-B00 – Lower Unit Anodes (CM41109ZW1B00A) – x2
#13 – 90101-ZW9-003 – Oil Fill Bolt – x1
#14 – 90120-ZY3-000 – Drain Plug – x1
#15 – 90205-ZY1-000 – Nut (6mm) – x1
#16 – 90225-HW1-670 – Flange Bolt (6x35mm) for Anode – x1
#17 – 90601-ZE2-000 – Drain Plug Washer (12mm) – x1
#18 – 90752-ZW1-B02 – Woodruff Key – x1
#19 – 90756-ZVL-000 – Dowel Pins (6x10mm) – x2
#20 – 90758-ZW1-B00 – Split Pin (4.0mm) – x1
#21 – 91301-ZW4-003 – O-Rings (6.9x1.45mm) for Drain Washer – x2
#22 – 91356-ZW1-B00 – O-Ring, Water Pump – x1
