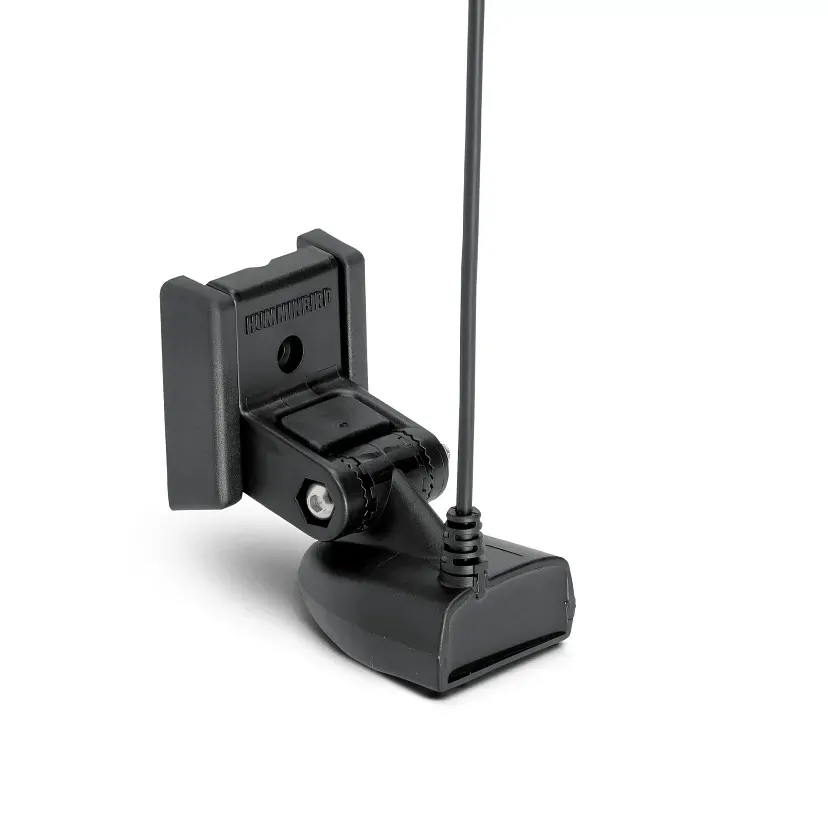

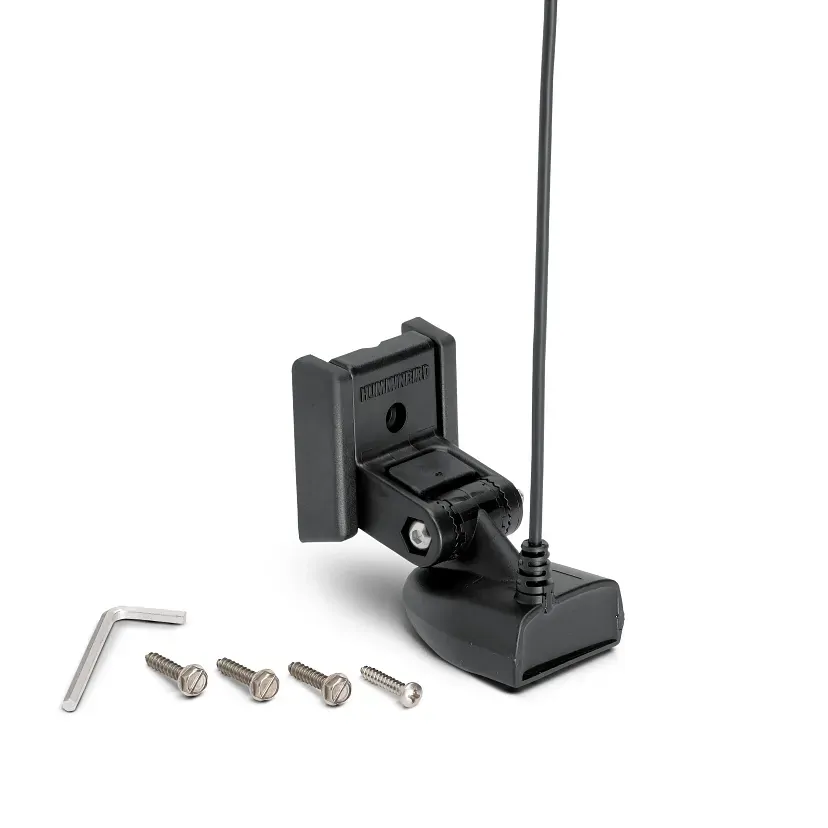

Humminbird - Helix CHIRP Transom Transducer - 103035
Humminbird HELIX CHIRP Trandsducer
Transom Mount Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Includes built-in temperature
Dual spectrum CHIRP narrow beam – 25 degrees, 180-240 kHz wide beam – 42 degrees, 140-200 kHz temperature sensor transom mount
• HELIX 5 CHIRP G2 - GPS-equipped models only
• HELIX 7 CHIRP G2/G3 - GPS-equipped & CHIRP DI G2 models
• HELIX 7 CHIRP G2N/G3N - All models
• HELIX 8 CHIRP G3N - All models
• HELIX 9 CHIRP G2N/G3N - All models
• HELIX 10 CHIRP G2N/G3N - All models
• HELIX 12 CHIRP G2N/G3N - All models
• ICE HELIX CHIRP G2/G2N - All models
(B-103035)
Compatible With
- HELIX 5 CHIRP G2/G3 – GPS-equipped models only, HELIX 7 CHIRP G2/G3/G4 – GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N/G4N – All models, HELIX 8 CHIRP G3N/ G4N – All models, HELIX 9 CHIRP G2N/G3N/G4N – All models, HELIX 10 CHIRP G2N/G3N/G4N – All models, HELIX 12 CHIRP G2N/G3N/G4N – All models, ICE HELIX CHIRP G2/G3 and newer – All models (in Open Water Mode) Side Imaging™ and Down Imaging™ units can support this transducer as a 2D sonar only transducer.
Cable Length
- 20 Feet
Notice
- This transducer does not support Side Imaging™ or Down Imaging™.
Dual Spectrum CHIRP
- Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
Dual Spectrum CHIRP- Max Depth
- 1200ft (365m)
| General | |
| Model | XNT 9 HW T - HELIX Dual Spectrum CHIRP w/ Temp Transom Transducer |
| Product Code | 710274-1 |
| UPC | 0082324053061 |
| Warranty | One-Year Warranty |
| Technical Details | |
| Mount Type | Transom |
| Sonar Type | Dual Spectrum |
| SKU | B-103035 |
| Model # | 710274-1 |
| Barcode # | 082324053061 |
| Brand | HUMMINBIRD |
| Shipping Weight | 0.4600kg |
| Shipping Width | 0.216m |
| Shipping Height | 0.090m |
| Shipping Length | 0.184m |
1-Year Warranty
