Humminbird - Transom Transducer - Compact MSI+ & XPLORE - 103222
Suits APEX, SOLIX G3 & XPLORE
$976.00
RRP $1,259.00
SAVE $283.00 (22%)
In Stock (10
)
- Dispatches in 2 days

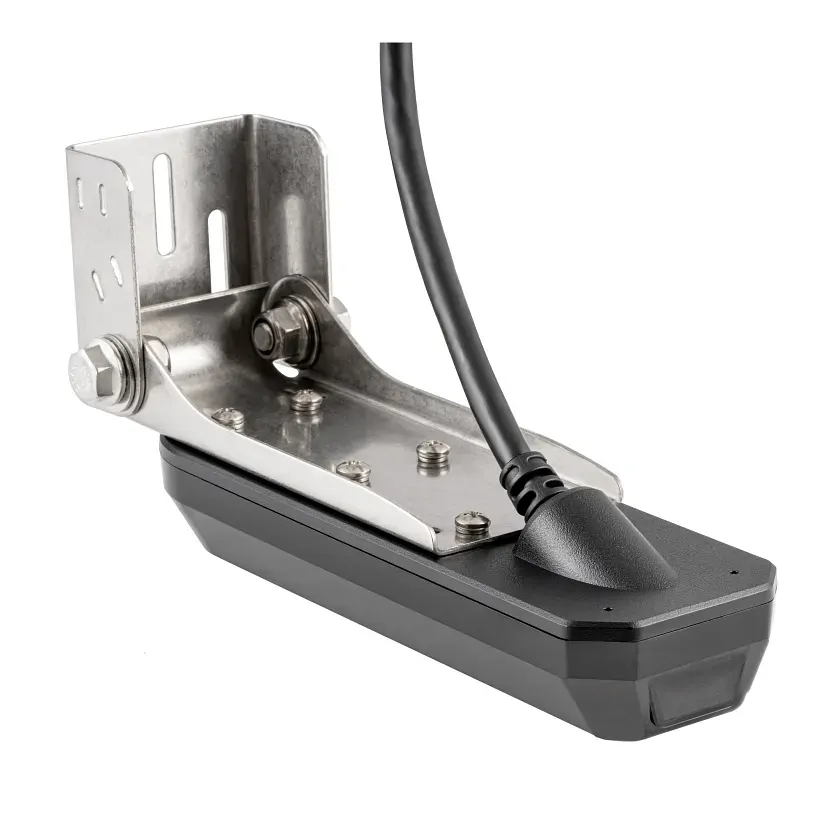

Humminbird Transom Transducer, Suits - Compact MSI+ & XPLORE
Humminbird Compact MEGA Side Imaging+ transducer is compatible with APEX, XPLORE and SOLIX G3 models. This transom mount transducer has a built-in temperature sensor, MEGA Side Imaging+, 455kHz and 1.1Mhz; Down Imaging+ frequencies 455kHz and 1.1 MHz, and Dual Spectrum 2D CHIRP with a range of 150-220kHz.

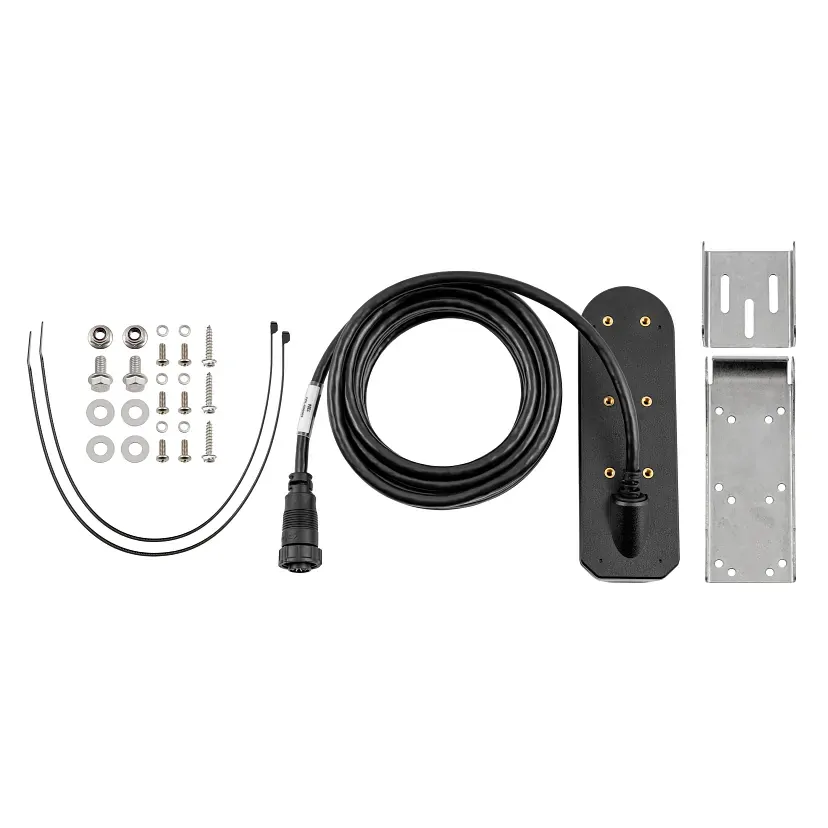

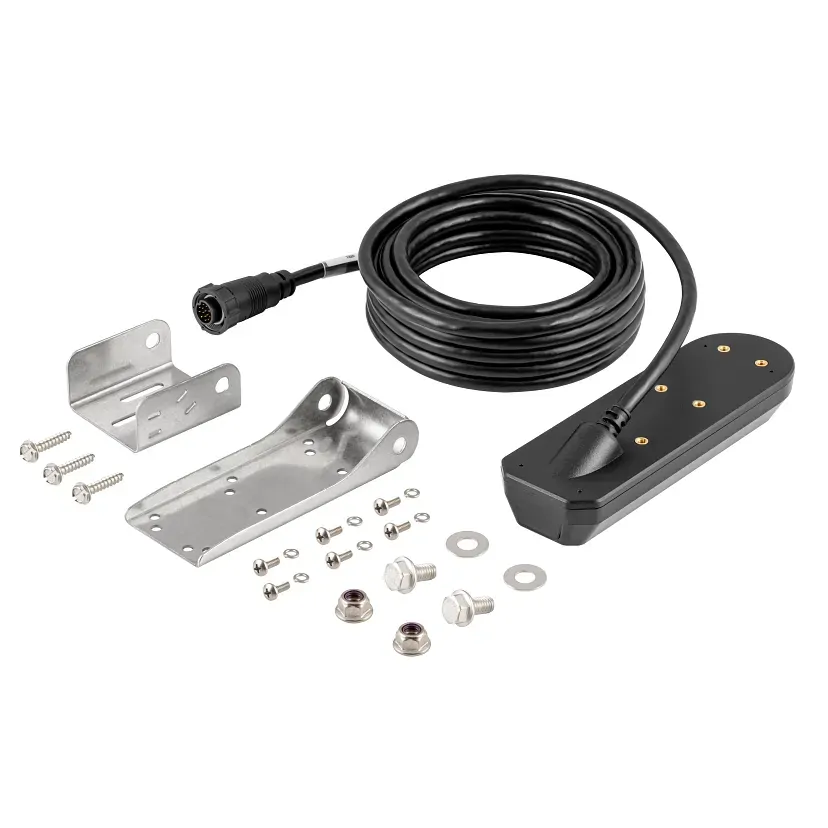

Comes with -
- XM 14 HW CMSI Transducer
- Mounting Bracket & Hardware
(B-103222)
Compatible With
- APEX, SOLIX G3 and XPLORE fish finder models
Cable Length
- 20 feet
Compact MEGA Side Imaging Frequencies - Max Range (side-to-side)
- 455kHz: 405-505 kHz - 800ft (244m), MEGA: 1.100-1.200 MHz - 400ft (122m)
Compact MEGA Down Imaging Frequencies - Max Depth
- 455kHz: 420-520 kHz - 400ft (122m) MEGA: 1.125-1.225 MHz - 400ft (122m)
Dual Spectrum CHIRP Frequencies - Full
- 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
Reliable Features

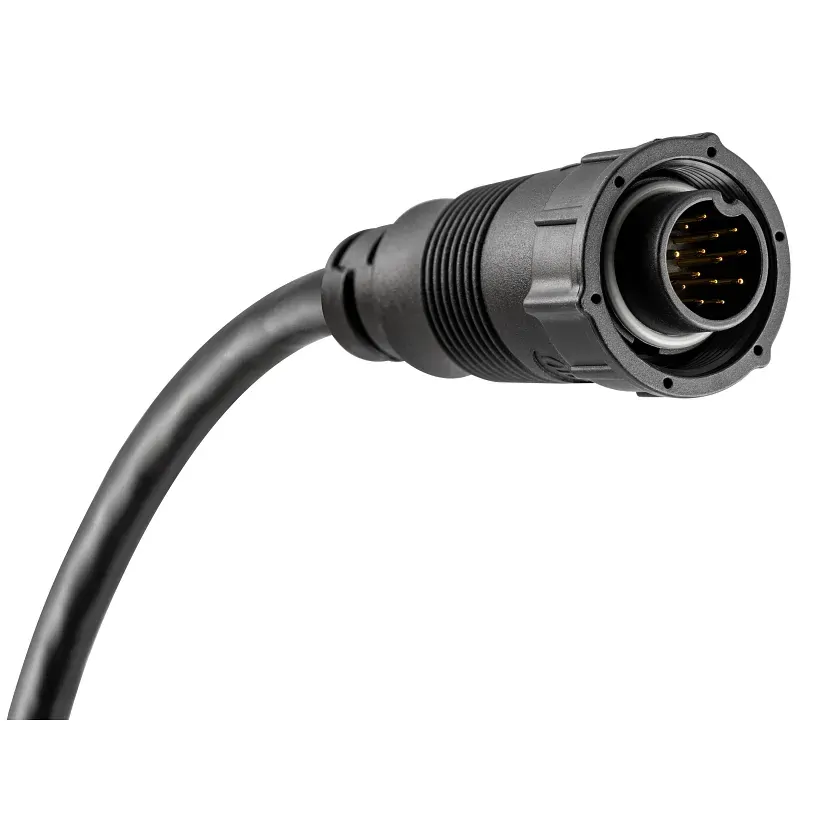

- A screw-on connector and built-in temperature sensor
| General | ||
| Model | XM 14 HW CMSI T - Compact MEGA Side Imaging+ Transducer | |
| Product Code | 710311-1 | |
| UPC | 0082324059339 | |
| Warranty | One-Year Warranty | |
| Technical Details | ||
| Mount Type | Transom | |
| Sonar Type | Down Imaging, Dual Spectrum, MEGA Imaging +, Side Imaging | |
| SKU | B-103222 |
| Model # | 710311-1 |
| Barcode # | 082324059339 |
| Brand | HUMMINBIRD |
| Shipping Width | 0.050m |
| Shipping Height | 0.050m |
| Shipping Length | 0.050m |
Warranty
- 1-Year Limited Warranty
