Lenco Electric Trim Tab Kit 12" x 12" LED Switch 312774

$1,816.00
RRP $2,219.00
SAVE $403.00 (18%)
In Stock (5 ) - Ships in 1 day

Codes (ref Description below...)


Calculate Shipping

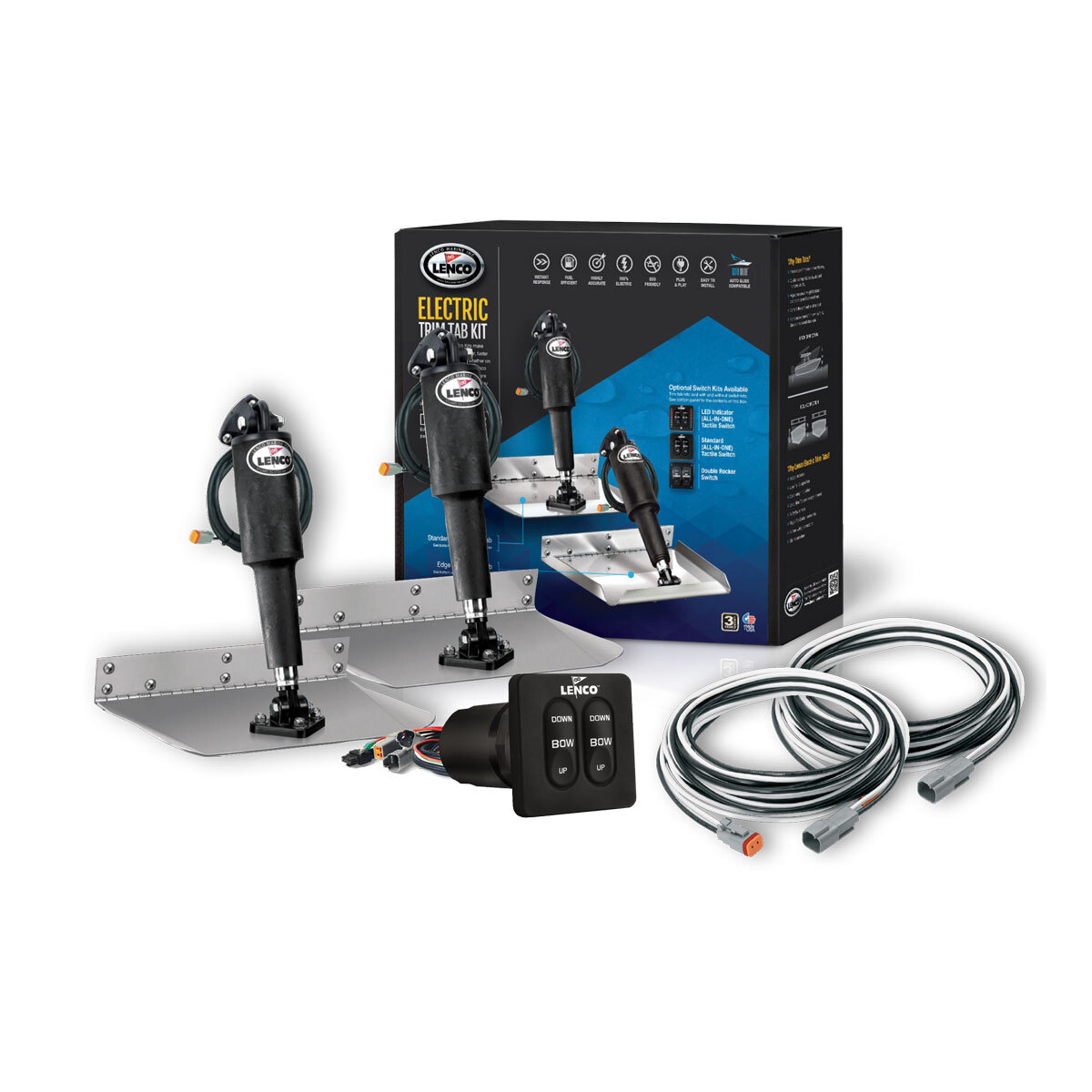

Complete Standard Trim Kit

Everything you need in one box! The Standard trim tab kit with the added benefit of having the NEW integrated switch choice & power connector all included. Boat lengths 16’ (4.9 m) to 30’ (9.1 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8” (1.6 cm) flared trailing edge & 1/8” (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Switch included.

Features
• Blades 12 Gauge stainless steel
• Switch kit Included
• Made in Stuart, Florida U.S.A.
• 2x 6.1m Actuator extension harness
• 2x Actuators with 1.8m harness
• 2x SS Blades with upper and lower mounting brackets
• 3 Year warranty

CODE
BLADE SIZE L X W IN SWITCH KIT INCLUDED RECOMMENDED BOAT LENGTH M
312432 9 x 12 Standard Switch 4.8 - 7.6
312440 12 x 12 Standard Switch 5.1 - 9.1
312752 9 x 12 Double Rocker Switch 4.8 - 7.6
312754 12 x 12 Double Rocker Switch 5.1 - 9.1
312772 9 x 12 LED Switch 4.8 - 7.6
312774 12 x 12 LED Switch 5.1 - 9.1

(B-P-312432)

SKU B-P-312432
Brand Lenco
