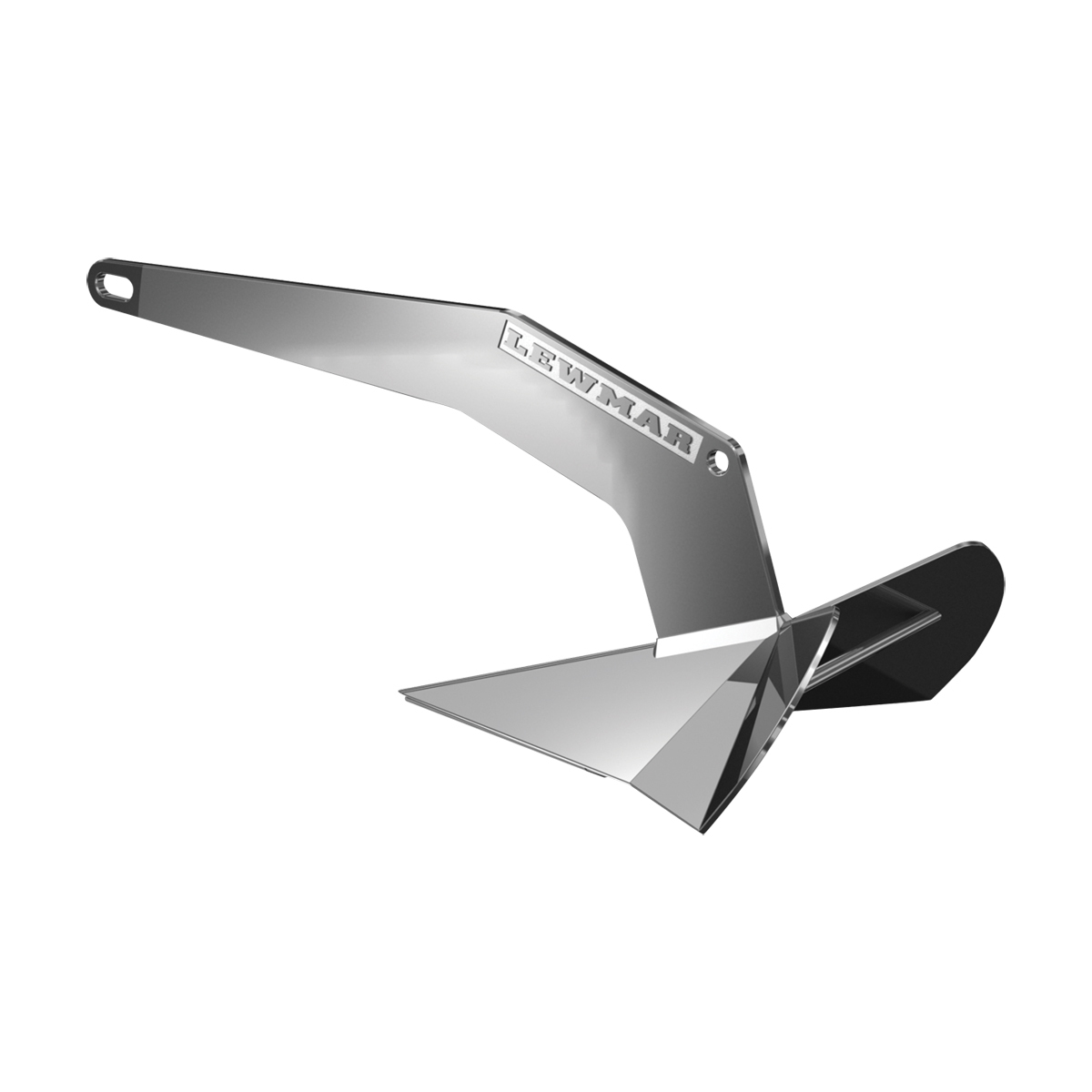

Lewmar® Anchor - DTX® Stainless Steel 146370
Weight6kg
The DTX® anchor fills the gap between the existing galvanised and stainless steel Delta® anchors. Made from 316 grade stainless steel, The DTX® anchors feature exceptional anti-corrosion performance and the enhanced aesthetics that stainless anchors offer. Utilising lead ballast encapsulated within the tip of the anchor to achieve the perfect centre of gravity, the DTX® offers the initial bite and holding reliability that users of Delta® anchors have come to expect. Every DTX® anchor is certified to Lloyd’s Ordinary Holding Power standard and is warranted for 3 years against breakage.
| BLA Code | Weight kg | Weight lb | Suggested Chain Size mm | A mm | B mm | C mm | D mm | E mm | F mm |
|---|---|---|---|---|---|---|---|---|---|
| 146370 | 6 | 14 | 6 | 593 | 265 | 10 | 450 | 243 | 254 |
| 146372 | 10 | 22 | 8 | 695 | 310 | 12 | 526 | 282 | 292 |
| 146374 | 16 | 35 | 8 | 812 | 362 | 12 | 614 | 328 | 339 |
| 146376 | 20 | 44 | 10 | 877 | 392 | 16 | 663 | 357 | 268 |
| 146378 | 25 | 55 | 10 | 945 | 415 | 16 | 713 | 387 | 298 |
| 146380 | 32 | 70 | 10 | 1023 | 453.5 | 20 | 775 | 425 | 432 |
| 146382 | 40 | 88 | 10 | 1103 | 489 | 20 | 883 | 437 | 461 |
| 146384 | 63 | 139 | 13 | 1270 | 567 | 25 | 963 | 508 | 537 |
1 Damage by deformation or bending is not covered by this guarantee.
2 Lloyd’s Test Certificate is available for individual anchors by arrangement.
(B-P-146370)
| SKU | B-P-146370 |
