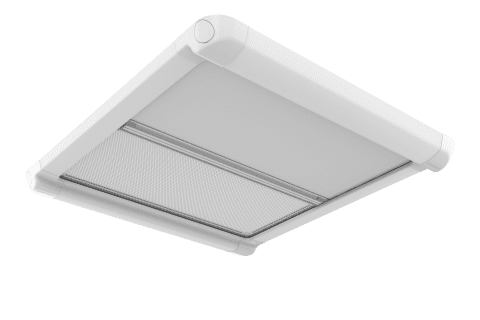

Lewmar Eclipse Roller Shade - Size10 - 170320

Easy to assemble, fit, maintain and adjust, our new shade range is the perfect addition to our great hatch & portlight range. All components have been specially selected for their suitability in withstanding the harsh marine environment. The chosen polymers and fabrics are designed to look good within the interior of any boat and are easy to keep clean and offer excellent resistance to damp conditions. Simple and clean in design our range will complement the internal styling of your boat and provide you with a perfect solution to insect and light protection.

Materials & Functions
Flyscreen material – allowing airflow whilst keeping insects out
Blackout material – water repellent, UV stable & wipe clean
Sleek aesthetic handle system which locks in place with magnets
Easy to operate, magnet system to connect both shades in the Box
Delivered pre-assembled in 4 pieces to reduce box size & distributor storage space
Sides snap onto end assemblies
Rubber seal can then be pushed into the groove
Trim can be added (sold separately)

Mounting & Integration
Mounting through headlining with optional extra PVC flexible trim
Each edge has double sided foam tape, along with a screw in each corner to secure
Mounting with supplied silicon seal

Maintenance & Installation
Tension in blind can be adjusted to account for different mountings ie Horizontal “ Vertical
Pop off magnetic cover
Release spring lock
Adjust 1 turn at a time. CW to loosen, CCW to tighten
Push spring lock back into housing ensuring its seated correctly
Test by pulling blind fully out. Repeat adjustment if necessary
Return cover

Internal Workings
Easy to disassemble
All fittings snap fit
All none plastic parts made from 316 grade stainless steel to avoid corrosion
