Marine Town Fuel Breathers - Recessed Stainless Steel S/S 200535
S/S
$60.00
RRP $81.90
SAVE $21.90 (27%)
In Stock (17
)
- Dispatches in 2
days

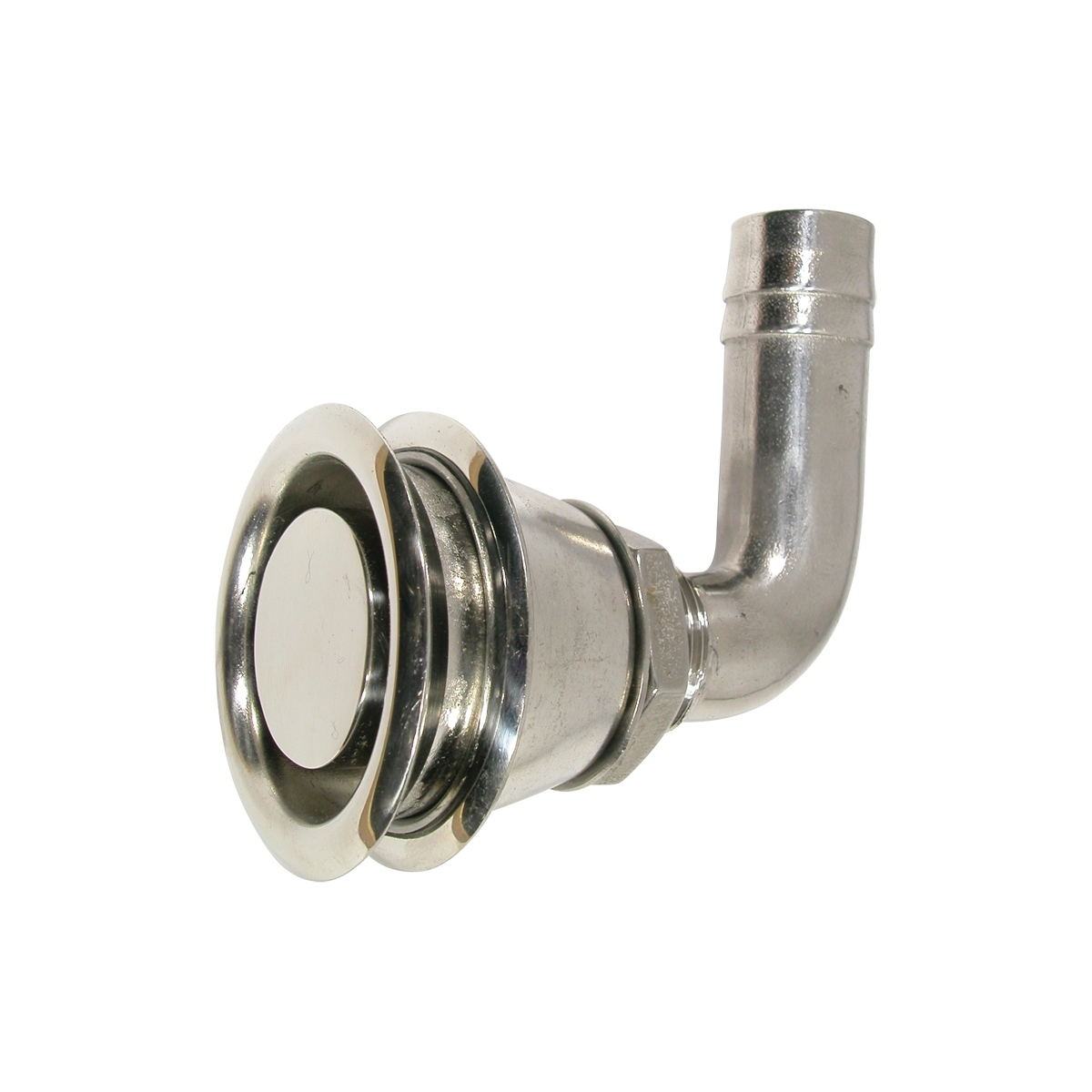

Cast 316 grade stainless steel, four vent hole, round head angled breather, available with a choice of recessed cup materials. Provides flush hull installation, suitable for all types of hull material. Breathers 200535-200537 are supplied with pressed stainless steel recessed cups and stainless steel nut. A shallow pressed stainless steel inner cup washer is available as a separate part to increase the maximum hull thickness from 19mm to 32mm. Protrusion is only 4mm.
| Code | Material | Hose Size mm | Mount Hole mm | Head Dia. mm | Intrusion mm | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 200535 | S/S | 16 | 36 | 46 | 64 | |||||
| 200536 | S/S | 19 | 36 | 46 | 64 | |||||
| 200537 | S/S | 13 | 36 | 46 | 64 | |||||
| 200538 (Cup Washer) | S/S | 13 | 36 | 46 | 64 | |||||
(B-P-200535)
| SKU | B-P-200535 |
