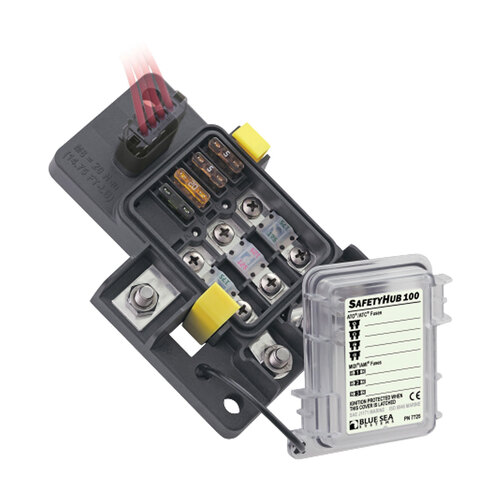

Blue Sea SafteyHub 100 Fuse Block BS-7725
$262.00
RRP $349.90
SAVE $87.90 (25%)
In Stock (5
)
- Dispatches in 2
days
The SafetyHub 100 combines an ignition protected fuse block and integrated connecting plugs. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates up to seven fused circuits.
• Accepts three AMI or MIDI Fuses for high-amp circuits including panel feeds, windlasses, and stereo amplifiers
• Accepts four ATO or ATC Fuses for circuits including bilge pumps, electronics and lights
• Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements
• Integrated connector plug eliminates loose wires and provides a secure,waterproof connection
• Fuses sold separately
| Code | BS-7725 | |
|---|---|---|
| Amperage Max. Operating (combined) | 280A | |
| Voltage Nominal Operating | 12V DC | |
| Minimum Cable Size to Meet Ratings | 4/0 AWG (120 mm²) | |
| Recommended Ring Terminal | M8 (5/16") | |
| MIDI or AMI Fuse Block | ||
| Amperage Max. Operating (per block) | 240A† | |
| Amperage Max. Operating (per circuit) | 170A† | |
| Fuse Amperages Available | 30A–200A | |
| Minimum Cable Size to Meet Ratings | 2/0 AWG (70 mm²) | |
| ATO or ATC Fuse Block | ||
| Amperage Max. Operating (per block) | 50A† | |
| Amperage Max. Operating (per circuit) | 20A† | |
| Fuse Amperages Available | 1A–20A |
(B-BS-7725)
| SKU | B-BS-7725 |
| Model # | 7725 |
| Barcode # | 632085077259 |
| Brand | BLUE SEA |
| Shipping Weight | 0.5500kg |
| Shipping Width | 0.173m |
| Shipping Height | 0.275m |
| Shipping Length | 0.094m |
| Unit Of Measure | ea |
