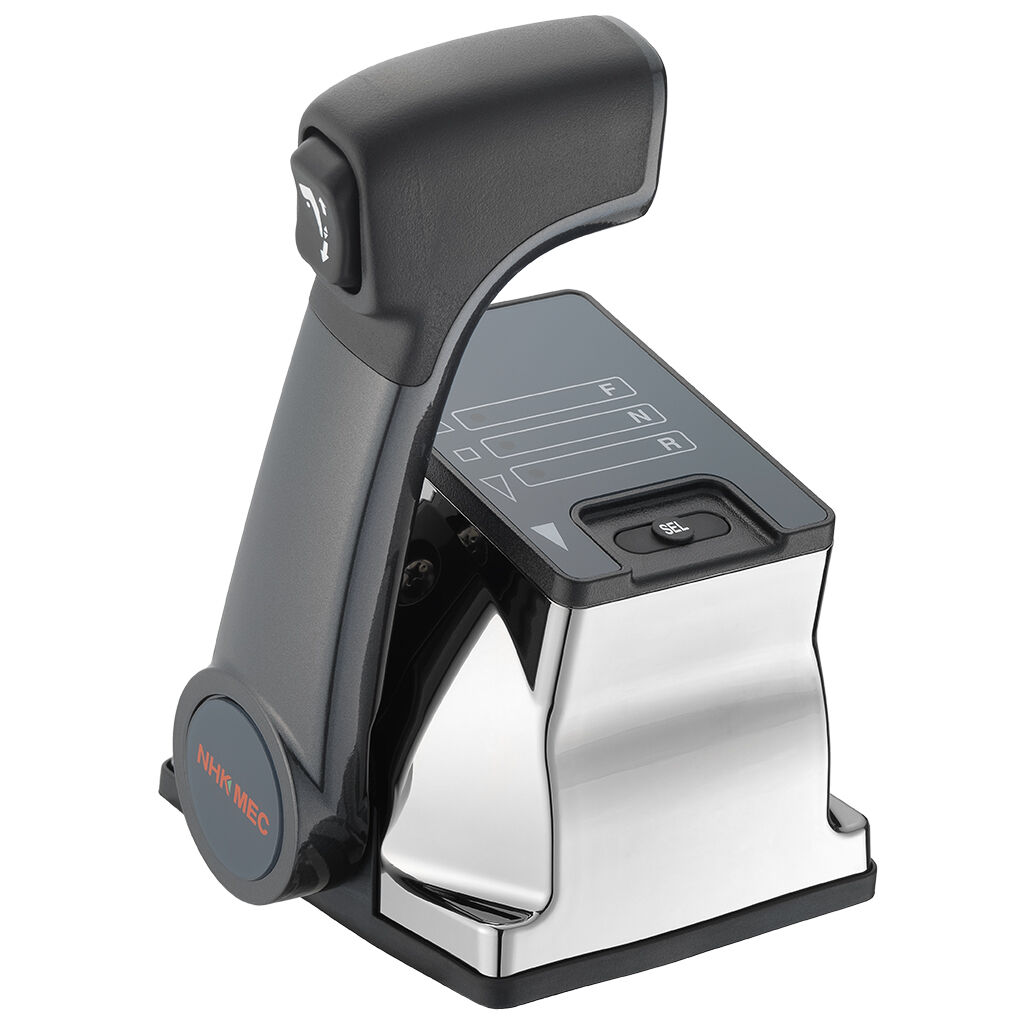

NHK KE-4XG Single O/B Control Head with Power Trim & Tilt - 305703
Single outboard electronic control with trim
NHK KE-4XG Electronic Control Heads
The NHK KE-4XG Electronic Control Head range provides smooth, reliable and precise electronic engine control for recreational, commercial and professional marine applications. Designed to operate as part of the NHK KE-4XG Electronic Control System, these control heads deliver intuitive throttle and shift operation while incorporating advanced features such as station transfer, Auto-Sync, neutral throttle control and built-in self-diagnostics.
Available in single and twin engine configurations, with optional Power Trim & Tilt (PTT) functionality and premium stainless steel variants, the KE-4XG range can be configured to suit a wide variety of outboard and inboard propulsion systems. The system supports up to four control stations and is compatible with both 12V and 24V electrical systems.
Available Models
| Part Number | NHK Part No. | Model | Configuration | Power Trim & Tilt | ||||
|---|---|---|---|---|---|---|---|---|
| 305703 | NM2011-00 | Single O/B Style | Single Engine | Yes | ||||
| 305704 | NM2012-00 | Single O/B Style | Single Engine | No | ||||
| 305705 | NM2013-00 | Single Stainless Steel O/B Style | Single Engine | No | ||||
| 305706 | NM2061-00 | Twin O/B Style | Twin Engine | Yes | ||||
| 305707 | NM2062-00 | Twin Chrome | Twin Engine | No | ||||
| 305708 | NM2063-00 | Twin Stainless Steel | Twin Engine | No |
Features
- Designed for NHK KE-4XG Electronic Control Systems
- Electronic throttle and shift operation
- Supports up to four control stations
- Control station transfer functionality
- Auto-Sync engine synchronisation
- Neutral throttle operation
- Built-in system self diagnostics
- 12V and 24V adaptability
- Optional integrated Power Trim & Tilt on selected models
- Suitable for commercial and recreational vessels
- Available in chrome and stainless steel finishes
- Suitable for single and twin engine installations
System Compatibility
- NHK KE-4XG Control Unit
- NHK KE-4XG Shift & Throttle Actuators
- NHK KE-4XG CAN Bus Harness Network
- NHK KE-4XG T-Harness Network
- NHK KE-4XG Power Supply Harnesses
- NHK KE-4XG Multi-Station Installations (up to 4 stations)
- NHK KE-4XG Accessories including Buzzers, Triple Switches and Remote Controls
Applications
- Single engine outboard vessels
- Twin outboard installations
- Twin inboard diesel installations
- Recreational power boats
- Commercial work boats
- Passenger vessels
- Fishing vessels
- Multi-station helm installations
Note: Control heads are one component of the NHK KE-4XG Electronic Control System and require a compatible Control Unit, Actuator and Harness Network for operation. Select the control head configuration that matches your engine arrangement, helm layout and Power Trim & Tilt requirements.
(B-P-305703)
| SKU | B-P-305703 |
| Brand | NHK MEC |
