NHK KE-XG Settings Tool Harness - 306361

NHK KE-XG Settings Tool Harness

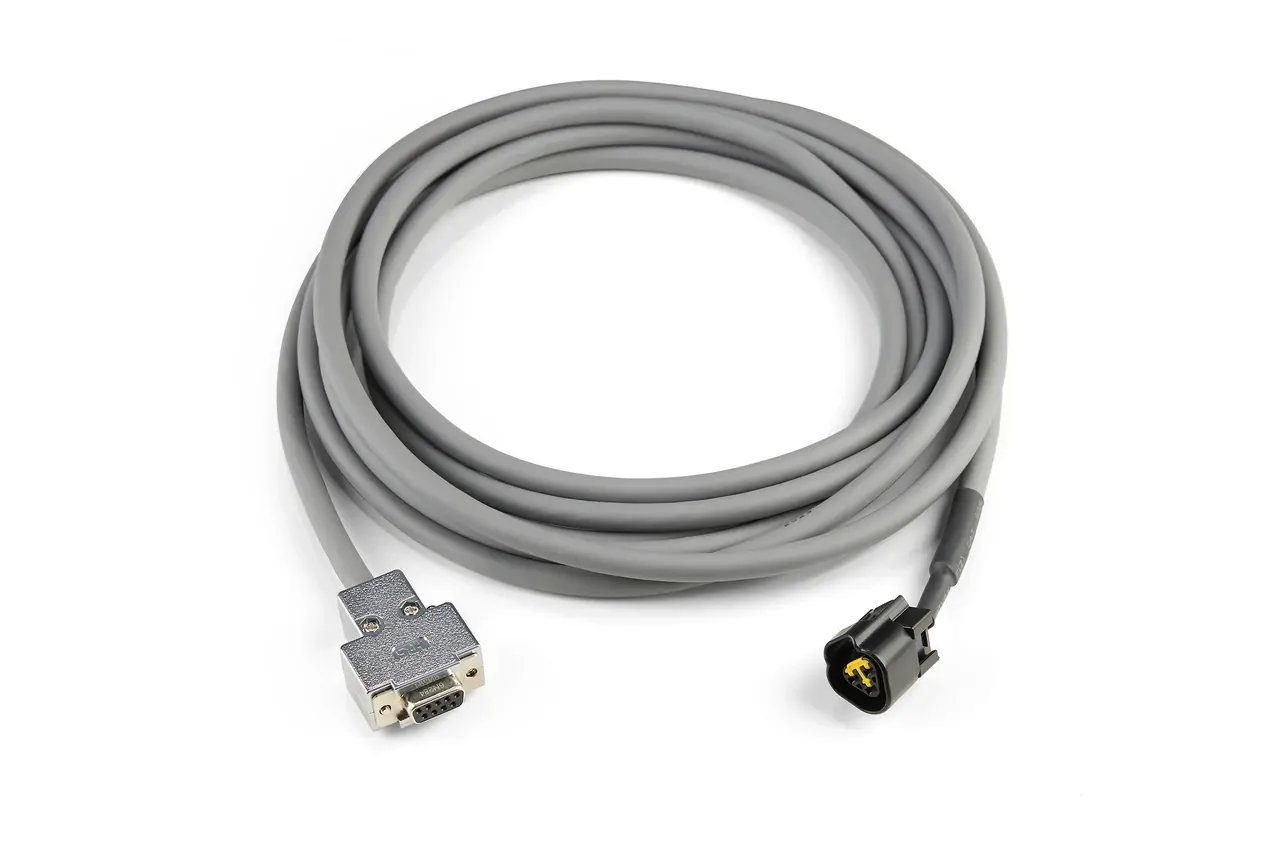

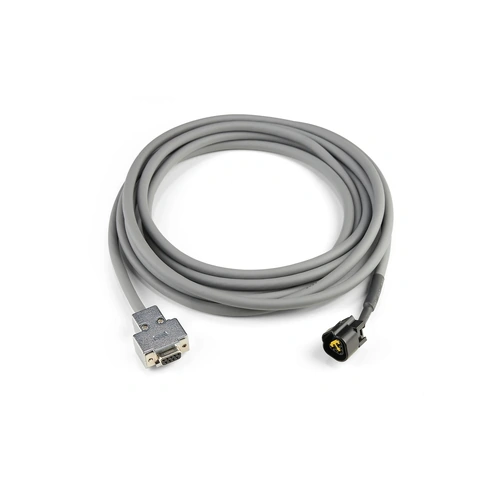

The NHK KE-XG Settings Tool Harness 306361 is a dedicated programming and diagnostic interface cable designed for NHK KE-XG electronic engine control systems. Identified by NHK MEC part number NM1476-01, this specialised harness enables communication between a Windows-based service computer running NHK Settings Tool software and the vessel's electronic control system.

Used by marine technicians, service agents and installers, the Settings Tool Harness provides access to NHK control system configuration, commissioning and diagnostic functions. It allows technicians to initialise new installations, retrieve fault history information, verify system parameters and perform configuration adjustments where required.

Designed specifically for NHK KE-XG electronic controls, the harness forms an essential service and maintenance tool for commissioning, troubleshooting and ongoing support of NHK electronic control installations.

Part Numbers

Features

• Programming and diagnostic interface harness
• NHK MEC Part Number NM1476-01
• Connects NHK KE-XG systems to NHK Settings Tool software
• Supports system commissioning and setup procedures
• Allows access to diagnostic and fault history information
• Supports configuration and parameter adjustment functions
• Designed for professional marine service applications
• Genuine NHK service and maintenance accessory

System Compatibility

• NHK KE-XG Electronic Control Systems
• NHK KE-4XG Electronic Control Systems
• NHK KE-5XG Electronic Control Systems
• NHK Electronic Control Units
• NHK Settings Tool Software
• NHK CAN Bus Network Systems

Applications

• New system commissioning
• Control system setup and configuration
• Diagnostic fault finding
• Service and maintenance procedures
• Control system upgrades
• Marine workshop and dealership service departments
• Commercial vessel maintenance programs
• Professional marine electronics installations

Note: The NHK KE-XG Settings Tool Harness is intended for use with NHK Settings Tool software and compatible NHK electronic control systems. Configuration changes should only be carried out by suitably qualified technicians familiar with NHK electronic control products.
