Outboard Tilt/Trim Support - Panther - MT-552195G

Panther Green Outboard Tilt/Trim Support up to 300HP

The Panther Outboard Tilt/Trim Lock is designed to fit a single ram tilt/trim motor of your outboard when towing on the road. It prevents the motor from returning to the down position where you could easily damage the skeg if it contacts the ground.

Benefits:

• Allows for the highway transport of your engine in the tilted position, giving sufficient clearance between your leg and the road.
• Assists in dampening the load on the tilt assembly.
• Most modern fibreglass boat trailers no longer have the provision for the old style motor bracket.
• Suits most engines in the 50hp to 300hp bracket.

The Inner Dimensions of the block slot are 19mm. Please check your trim diameter as some trim rams under 50hp may be too small.

Features:

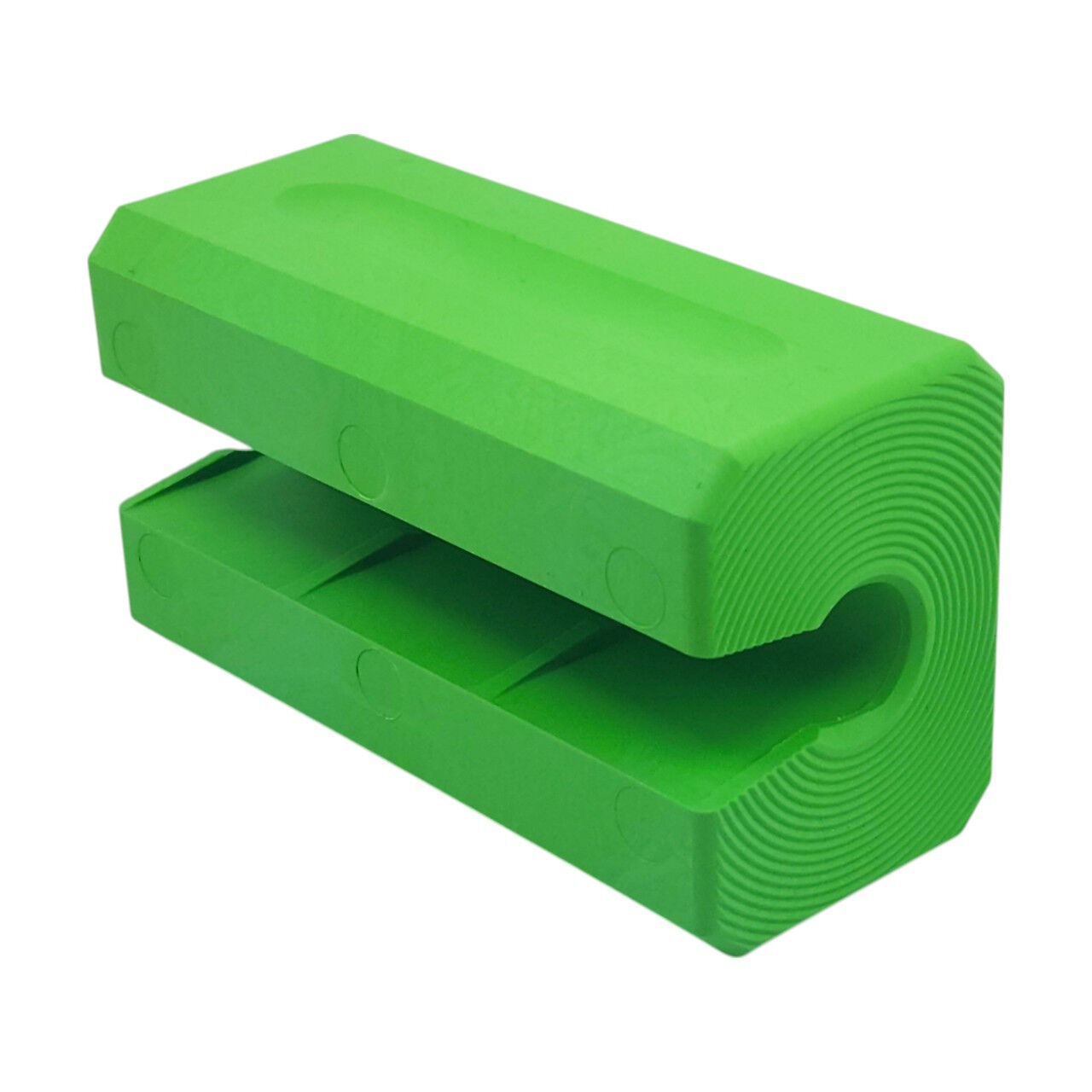

• Four locking internal tabs to clip over tilt shaft
• Machined ends to allow for extra grip
• Material polyurethane which is weather resistant
• Can be cut shorter to suit application
• Has been tested up to 300hp 4-stroke outboards.
• It out performs the softer EPDM rubber tilt support that the competition has. Polyurethane is slightly harder and less resistant to losing shape under load and will support more weight.

Dimensions: 12cm L x 7cm W x 5.5cm H (Purple)

Interchange with SCB Orange Support and Relaxn Red Support.
