Connects the threaded rod end of 30/33 or 40/43 series Cables to throttle, gear or actuator linkage. Machined brass construction.
(B-P-309840)
| SKU | B-P-309840 |
Connects the threaded rod end of 30/33 or 40/43 series Cables to throttle, gear or actuator linkage. Machined brass construction.

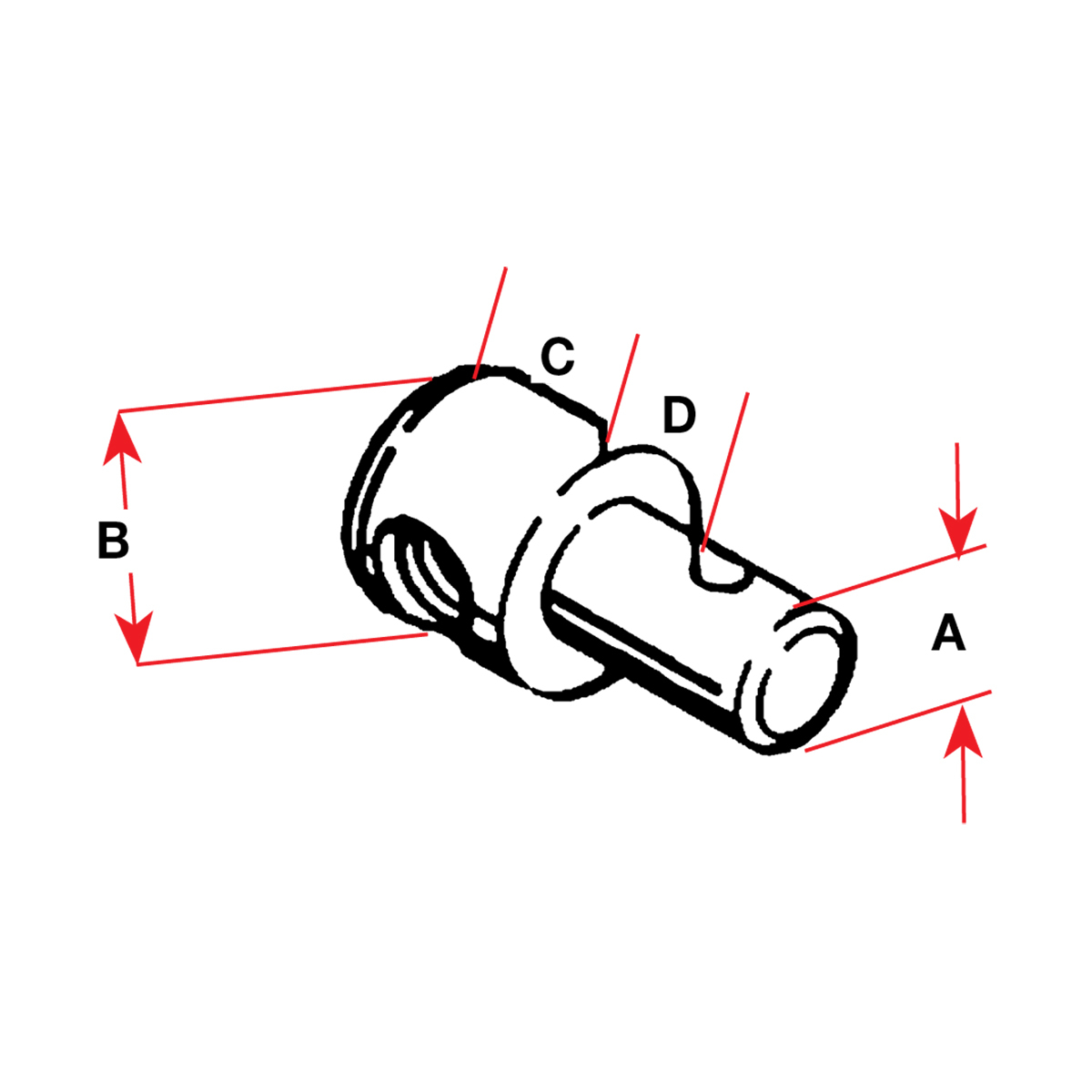

Code | Cable Series | Thread UNF | A in | B mm | C mm | D mm |
|---|---|---|---|---|---|---|
| 309840 | 33 | 10-32 | 1/4" | 11 | 8 | 3 |
| 309842 | 33 | 10-32 | 1/4" | 11 | 10 | 5 |
| 309844 | 33 | 10-32 | 1/4" | 11 | 8 | 8 |
| 309846 | 43 | 1/4" | 1/4" | 11 | 13 | 5 |
| 309850 | 43 | 1/4" | 5/16" | 13 | 14 | 3 |
