Veethree Electronics Arctic Gauges

Calculate Shipping

Description
Specifications

Veethree introduces the new range of Arctic instruments. Stylish white bezel design, black on white graphics, accurate and reliable, these tough instruments look good on a wide range of boats.

Features
• Arctic instruments are available for most outboards, stern drives and petrol powered inboards
• Domed glass design sheds water and resists scratching for long lasting appeal
• Enhanced illumination featuring through-dial and perimeter lighting for excellent readability at night
• Imperial and metric scales with ISO symbols where appropriate
• Easy to read flame tipped pointer
• Suitable for 24 volt application with the addition of a drop resistor (112394, 112396) and 24 volt bulb 112390
• Replaces former White Domed range
• Hourmeter 10 – 32 volt

Dimensions	A mm	B mm	C mm	D mm
75mm Tacho	96	86	70	13
75mm Speedometer	96	86	82	13
50mm Electrical	61	53	63	11

BLA Code	Description	Face Dia. mm	*Sender Style
	Tachometers:

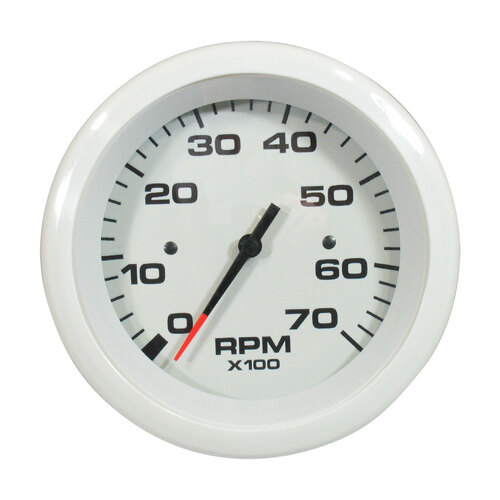

112096	Tacho 7000 RPM inboard & outboard	75	Coil and O/board alt
112098	Tacho 4000 RPM diesel alternator	75	Motor Alternator

	Speedometer:
112104	Speedo kit 35 MPH	75	G included
112106	Speedo kit 65 MPH	75	G included
112108	Speedo kit 80 MPH	75	G included

	Water temperature gauge:
112112	Water temperature 120ºF - 240ºF	50	D
112116	Water pressure gauge kit 0 - 40 psi	50	WP Included

	Oil pressure:
112120	Oil pressure 0 - 80 PSI	50	C
112122	Oil pressure 0 - 100 PSI	50	C

	Hourmeter:
112126	Hourmeter, 10,000 Hrs 10 - 32 volt	50	Not required

	Voltmeter:
112130	Voltmeter, 8 - 18 volt	50	Not required

	Ammeter:
112134	Ammeter 60 - 0 - 60	50	Not required

	Fuel:
112138	Fuel	50	F

	Trim:
112142	Evinrude®/Johnson® outboards	50	Engine manufacturer
112146	Mercury®/Mariner®, Cobra®, Volvo® DP & SX, Yamaha® O/B 2001 on	50	Engine manufacturer
