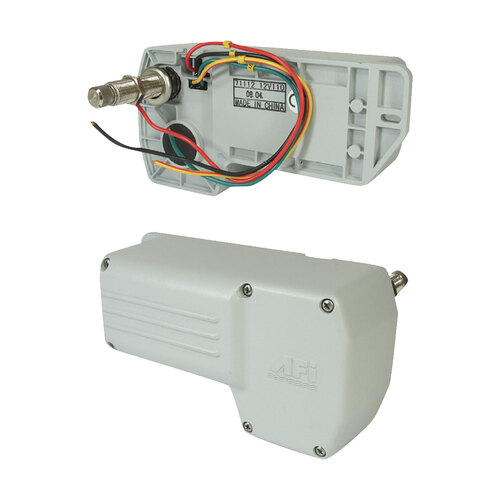

Marinco AFI 1.5 Waterproof Wiper Motors 116088
$520.00
RRP $679.00
SAVE $159.00 (23%)
In Stock (8
)
- Dispatches in 3 days
Fully sealed powder coated aluminium waterproof base and housing, powers up to 500mm sweeps.
Features
• Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft
• Factory pre set sweep angles of 110°, with easy adjustment to 45°, 60° or 80°
• Coast to park with adjustable right or left self parking
• M16 mm diameter shaft (5/8")
• Two speed motor
• Sealed 150mm, 16AWG wire leads, with RF shielded circuitry
• Stall torque 125 kgf/cm; 12.3 Nm (109 in – lbs)
• Stall current 11.5-13 amps at 12V
• No load current 0.5-1.2 amps at 12V
• Available in 23mm (12V only) and 50mm effective shaft lengths
• 3 year warranty
| Code | Volts | Motor Length mm | Motor Depth mm | Motor Width mm | Thread Shaft Length mm | Overall Shaft Length mm |
|---|---|---|---|---|---|---|
| 116088 | 12 | 197 | 70.28 | 101 | 50 x 16 | 65 |
(B-116088)
| SKU | B-116088 |
| Barcode # | 035028711126 |
| Brand | MARINCO |
| Shipping Weight | 1.6700kg |
| Shipping Width | 0.215m |
| Shipping Height | 0.134m |
| Shipping Length | 0.124m |
