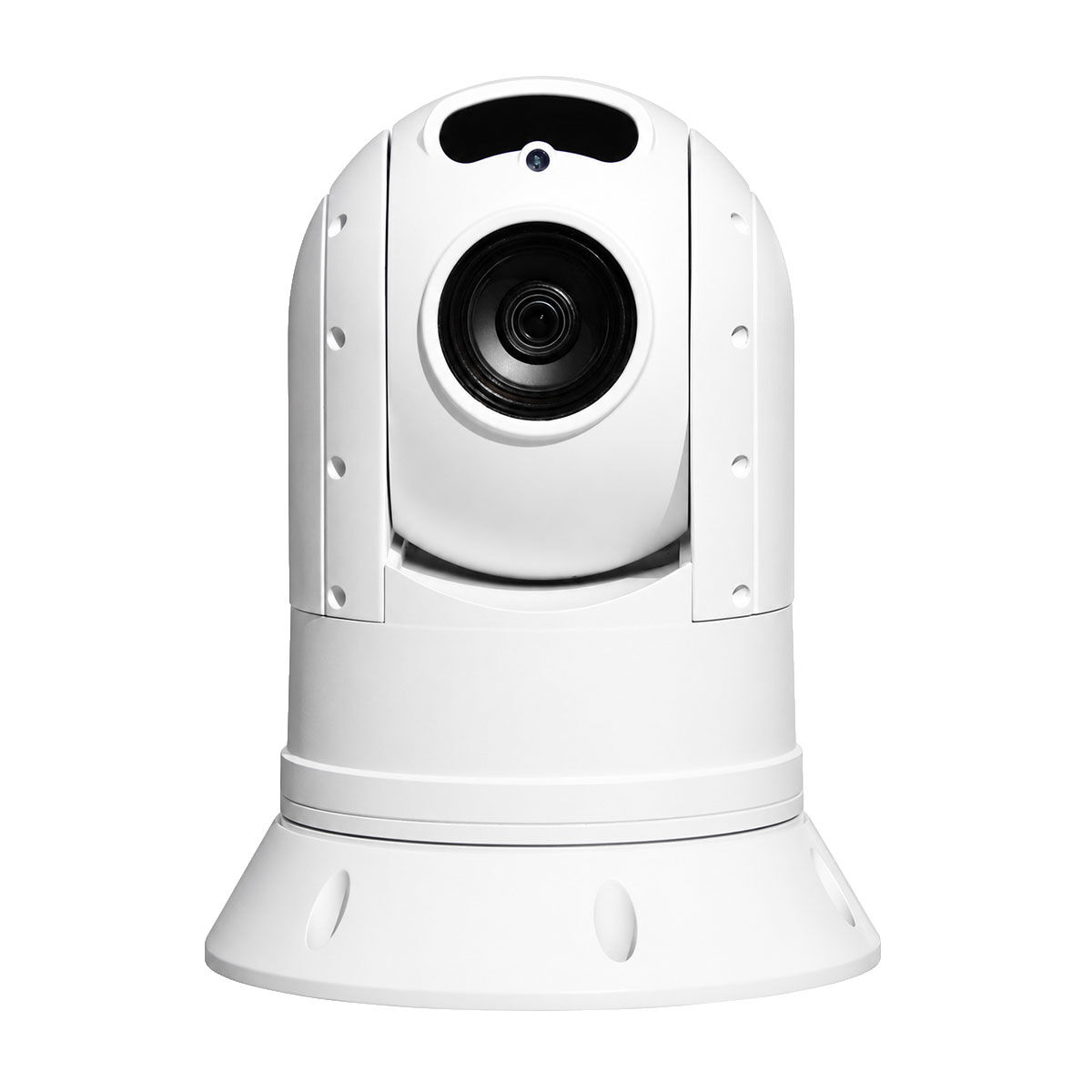

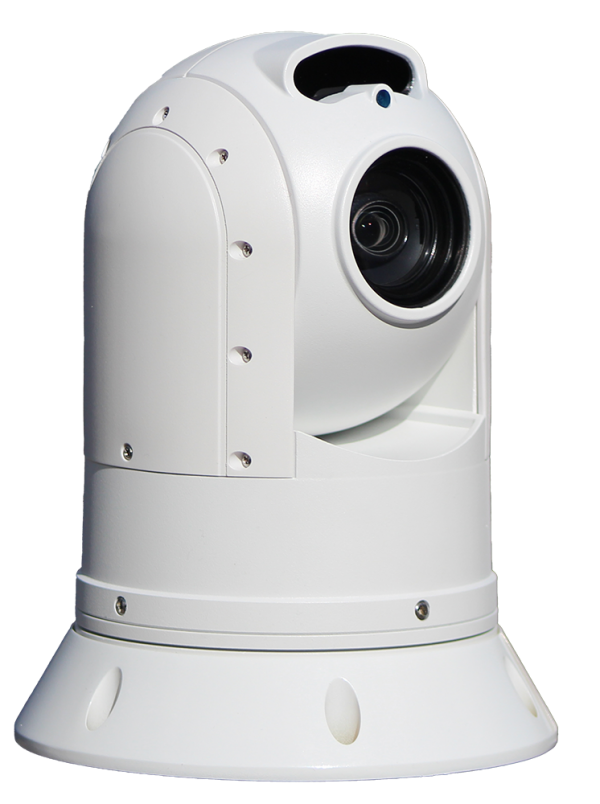

IRIS ATOM A418 PTZ Camera White Bottom Entry - 107179S
HD PTZ camera with bottom cable entry
IRIS ATOM A418 Compact Hi-Def IP PTZ Camera
The IRIS ATOM A418 is a compact high-definition IP PTZ camera designed to deliver exceptional surveillance, navigation support and situational awareness in demanding marine environments. Combining a high-performance 2MP HD imaging module with an impressive 30x optical zoom lens, the A418 allows operators to identify vessels, navigation markers and points of interest at significant distances.
Designed specifically for marine applications, the rugged waterproof housing incorporates advanced image enhancement technology, wide dynamic range processing and infrared illumination to provide outstanding image quality during both day and night operation. Compact dimensions, lightweight construction and flexible mounting options make the A418 an ideal solution for recreational, commercial and government vessels.
Available Models
| Part Number | Colour | Cable Entry | ||
|---|---|---|---|---|
| 107179S | White | Bottom Entry | ||
| 107180S | White | Side Entry | ||
| 107181S | Black | Bottom Entry | ||
| 107182S | Black | Side Entry |
Features
- High-definition 2MP visible spectrum camera
- Powerful 30x optical zoom lens
- Ultra-responsive pan, tilt and zoom control
- High-power infrared LED illumination
- Night vision capability up to 100 metres
- Advanced image enhancement and noise reduction technology
- Wide Dynamic Range (WDR) image processing
- Supports up to 255 user preset positions
- Four user-definable patrol routes
- User-configurable home position
- IP and RS485 serial data control
- ONVIF compliant
- NDAA compliant
- Compact marine-grade waterproof construction
Specifications
| Specification | Details | |
|---|---|---|
| Camera Type | Visible Spectrum IP PTZ Camera | |
| Resolution | 2MP HD | |
| Optical Zoom | 30x | |
| Infrared Range | Up to 100m | |
| Preset Positions | 255 | |
| Patrol Routes | 4 User Definable | |
| Power Consumption | 750mA @ 12VDC (8.4W) | |
| Environmental Rating | IP66 | |
| Dimensions | 206mm x 160mm Ø | |
| Weight | 2kg |
Applications
- Marine navigation and safety
- Vessel security and surveillance
- Docking and manoeuvring assistance
- Commercial vessel monitoring
- Search and rescue operations
- Perimeter security and observation
- Sports fishing and commercial fishing vessels
- Portable and rapid deployment surveillance systems
Note: Available with either side-entry or bottom-entry cable configurations and supplied in white or black finishes. The A418 supports control via NVR systems, IP networks, IRIS CMAC control systems and Pelco-D compatible joystick controllers.
(B-P-107179S)
| SKU | B-P-107179S |
| Brand | IRIS |
