IRIS S060 Camera 1.8mm Polished Stainless - 107125S
Ultra-wide angle stainless steel mini dome camera

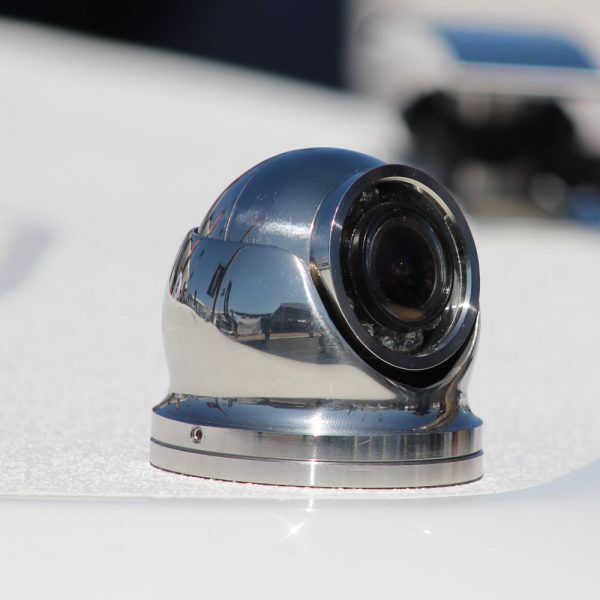

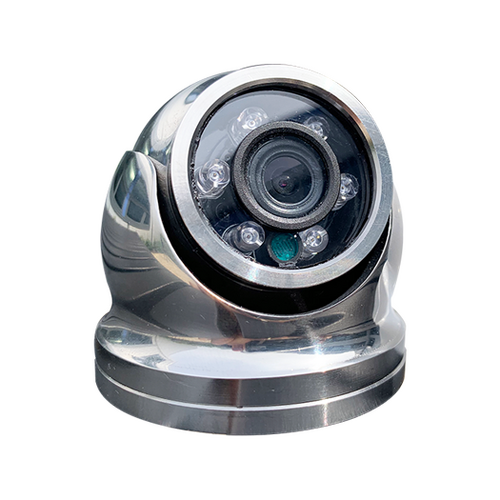

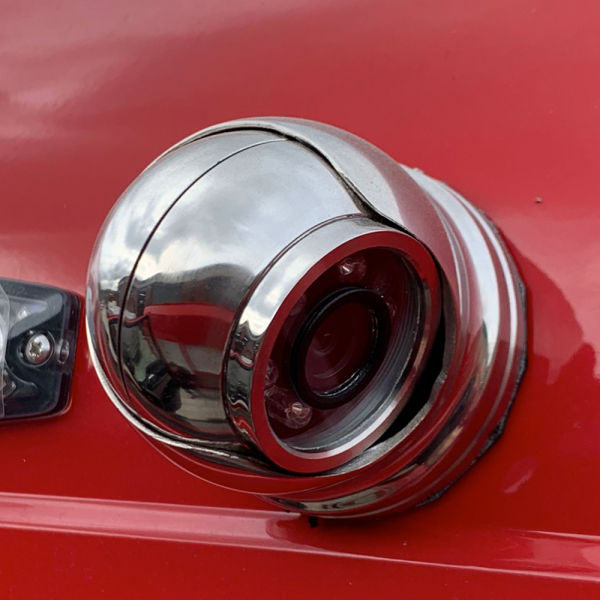

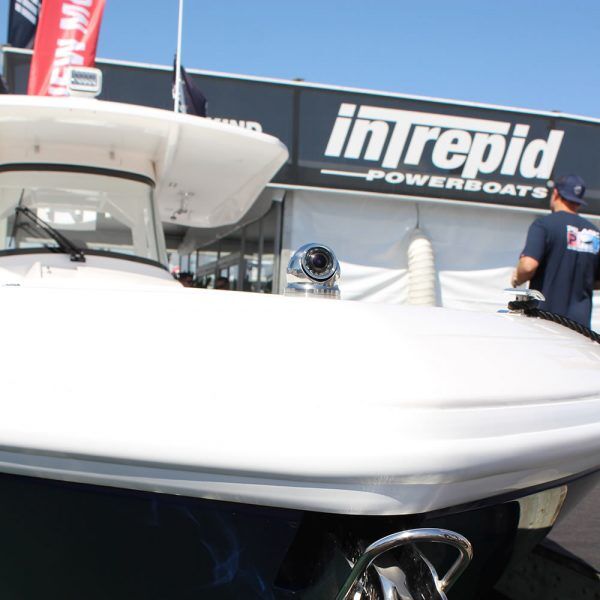

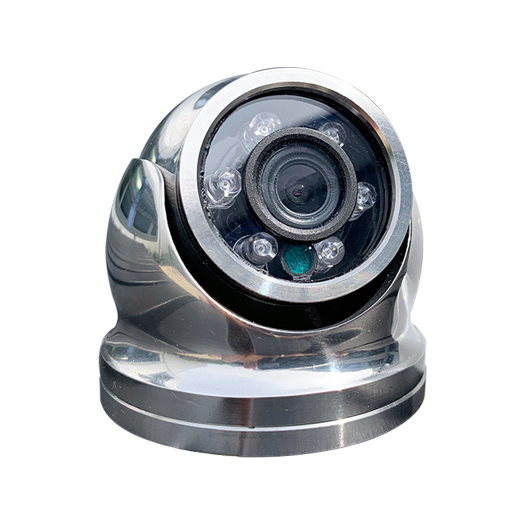

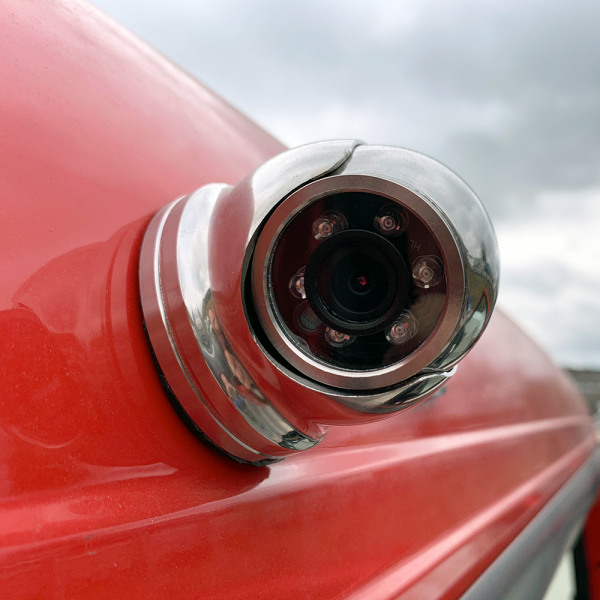

IRIS S060 Stainless Hi-Res Mini Dome Camera
The IRIS S060 Stainless Hi-Res Mini Dome Camera is a compact marine-grade surveillance camera designed to deliver high-quality video performance in demanding onboard environments. Built around a robust 316 stainless steel housing, the S060 provides exceptional corrosion resistance while maintaining a sleek, low-profile appearance suitable for both commercial and recreational vessels.
Featuring a versatile 4-in-1 camera module supporting CVBS, TVI, CVI and AHD video formats, the S060 offers outstanding compatibility with modern chartplotters, monitors, digital recorders and surveillance systems. High-definition video output of up to 1080P, integrated infrared illumination and multiple lens options allow the camera to be configured for a wide range of marine monitoring applications.
Available Models
| Part Number | Lens | Finish | ||
|---|---|---|---|---|
| 107125S | 1.8mm Ultra Wide Angle | Polished 316 Stainless | ||
| 107126S | 2.8mm Wide Angle | Polished 316 Stainless | ||
| 107127S | 3.6mm Standard | Polished 316 Stainless | ||
| 107128S | 1.8mm Ultra Wide Angle | White | ||
| 107129S | 2.8mm Wide Angle | White | ||
| 107130S | 3.6mm Standard | White | ||
| 107131S | 1.8mm Ultra Wide Angle | Black | ||
| 107132S | 2.8mm Wide Angle | Black | ||
| 107133S | 3.6mm Standard | Black |
Features
- Marine-grade 316 stainless steel construction
- Compact mini dome design for unobtrusive installation
- 4-in-1 video format compatibility (CVBS, TVI, CVI and AHD)
- Up to 1080P HD video output in real time
- 1000TVL analogue resolution
- Integrated infrared LED illumination
- Approximately 10m infrared night vision range
- Compatible with modern chartplotters, displays and DVR systems
- Low power consumption
- IP66 environmental protection rating
- Available in polished stainless, white and black finishes
- Available in multiple lens options to suit different viewing requirements
Lens Options
| Lens | Horizontal Field of View | Recommended Application | ||
|---|---|---|---|---|
| 1.8mm | 125° | Ultra-wide area coverage, cockpit monitoring, deck surveillance and docking assistance | ||
| 2.8mm | 110° | Wide-angle vessel monitoring and general surveillance applications | ||
| 3.6mm | 80° | General-purpose monitoring with greater viewing distance |
Specifications
| Specification | Details | |
|---|---|---|
| Camera Type | Mini Dome Camera | |
| Video Formats | CVBS, TVI, CVI, AHD | |
| Maximum Resolution | 1080P HD | |
| Analogue Resolution | 1000TVL | |
| Infrared Range | Up to 10m | |
| Environmental Rating | IP66 | |
| Housing Material | 316 Stainless Steel | |
| Dimensions | 60mm Diameter x 58mm Height |
Applications
- Deck monitoring
- Engine room monitoring
- Companionway surveillance
- Docking and reversing camera systems
- Commercial vessel security
- Fishing vessel monitoring
- Passenger vessel surveillance
- Luxury yacht security systems
- Anchor well monitoring
- General onboard CCTV installations
Note: The IRIS S060 is compatible with a wide range of chartplotters, DVR systems and displays supporting CVBS, TVI, CVI or AHD video formats. When paired with compatible IRIS HD switchers, HVR systems or video converters, the camera can also be integrated into modern digital display networks.
(B-P-107125S)
| SKU | B-P-107125S |
| Brand | IRIS |
