Ball Joints

Calculate Shipping

Description
Specifications

Connect 33, 43 and 63 series control Cables to throttle, gear or actuator linkage. Available in stainless steel or gold passivated steel. A spring loaded ball receptor provides quick release.

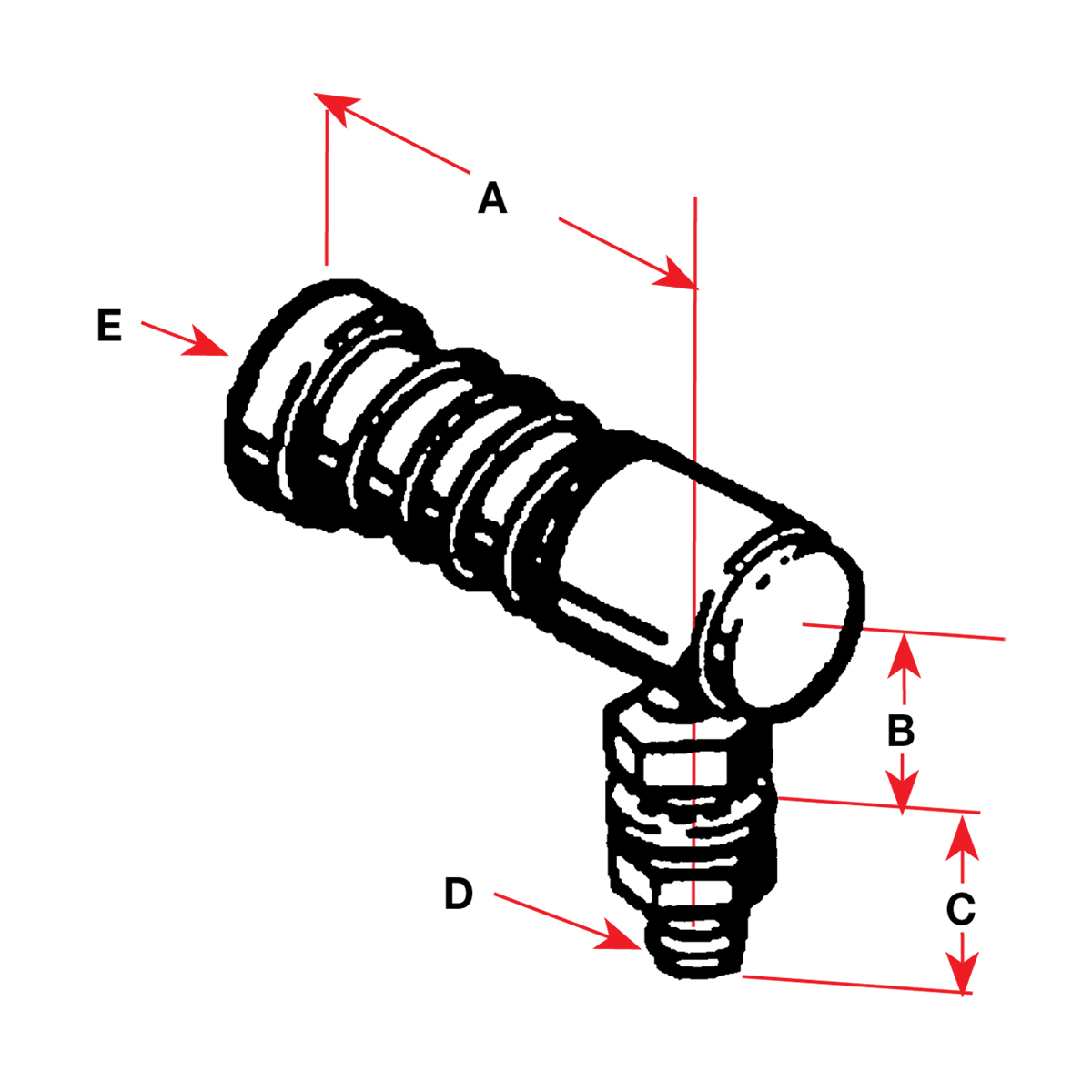

Code	Material	Cable Series	A mm	B mm	C mm	D Thread	E UNF
305006	Steel	30	23	12	14	1⁄4" UNF	10-32
309702	Steel	30	23	12	11	10-32 UNF	10-32
309706	S/S	30	32	12	14	M6	10-32
309714	Steel	30	32	15	22	5⁄16" UNF	10-32
309718	Steel	40	25	12	14	1⁄4" UNF	1⁄4"
309720	S/S	40	25	12	16	M6	1⁄4"
309728	Steel	60	32	15	22	5⁄16" UNF	5⁄16"
309730	S/S	60	25	13	22	M8	5⁄16"
