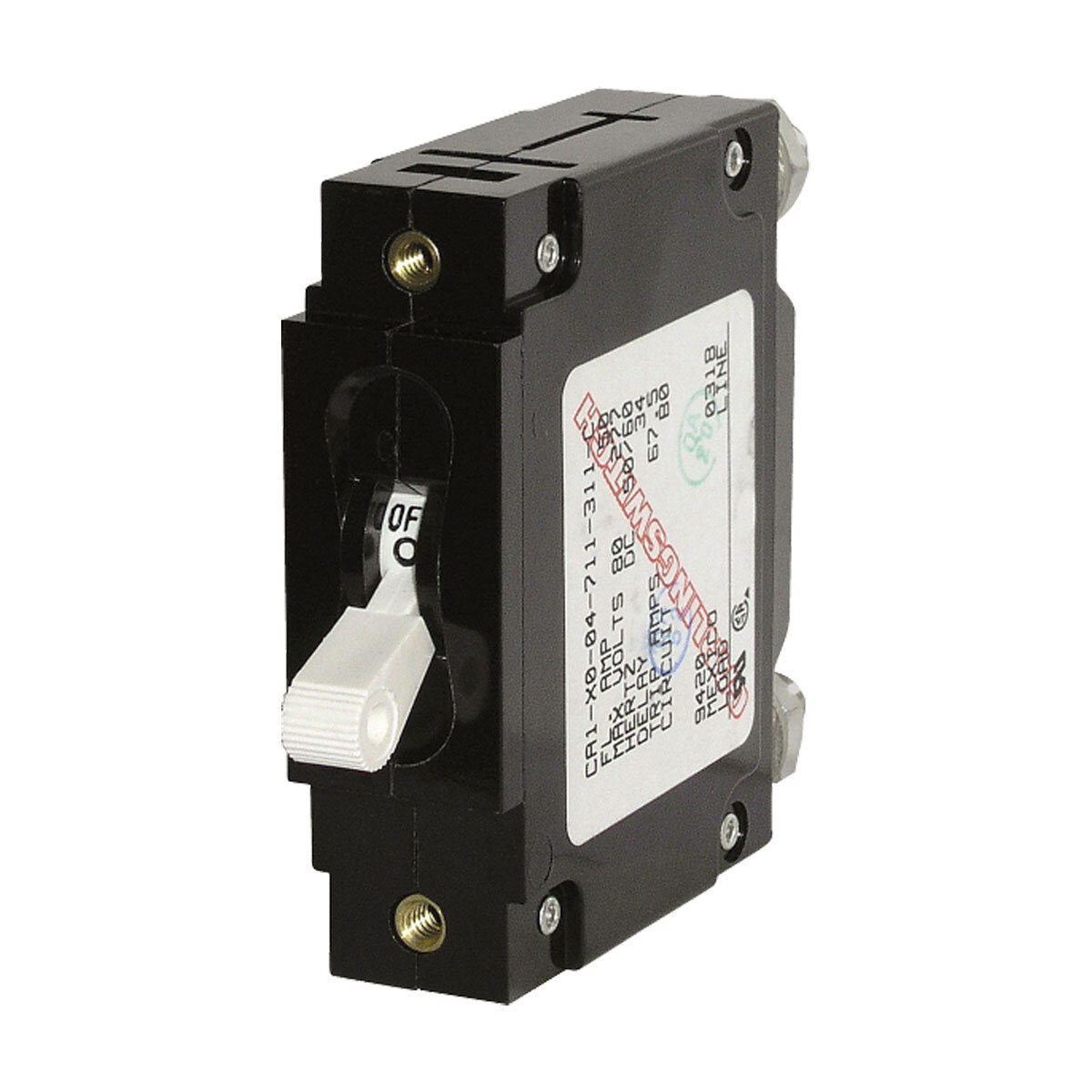

Blue Sea Systems C-Series Toggle Circuit Breakers BS-7250
White 100 DC Amps
$87.00
RRP $129.90
SAVE $42.90 (33%)
In Stock (1
)
- Dispatches in 2
days
Combines switching and circuit protection into a single device.
DC Features
• Large frame provides stud termination for 5–300 Amp loads
• Provides overcurrent protection for inverters, bow thrusters, and windlasses
• Offers high interrupt capacity – suitable for
• Main circuit protection
• Trip Free – cannot be held closed after trip
AC Features
• Frequently used for 120/240 Volt AC circuit protection
• Double pole can be used as AC Main circuit breaker to switch hotand neutral or two hots in 120/240 Volt AC Branch applications
• Triple pole can be used as 120/240 Volt AC Main circuit breaker to switch both lines (hots) and neutral
• Double and triple pole circuit breakers will trip all poles if any one pole trips
| BLA Code | Colour | Amps | Max DC Volts |
|---|---|---|---|
| Single Pole | |||
| BS-7350 | White | 5 DC | 80 |
| BS-7351 | White | 10 DC | 80 |
| BS-7352 | White | 15 DC | 80 |
| BS-7354 | White | 25 DC | 80 |
| BS-7355 | White | 30 DC | 80 |
| BS-7244 | White | 50 DC | 80 |
| BS-7250 | White | 100 DC | 65 |
| BS-7250I | Red | 100 DC | 48 |
| Double Pole | |||
| BS-7256 | White | 80 AC | 80 |
| BS-7269 | White | 200 DC | 65 |
| Triple Pole | |||
| BS-7271 | White | 300 DC | 65 |
