Lewmar Low Profile Boat Hatch Size 03 - 170052

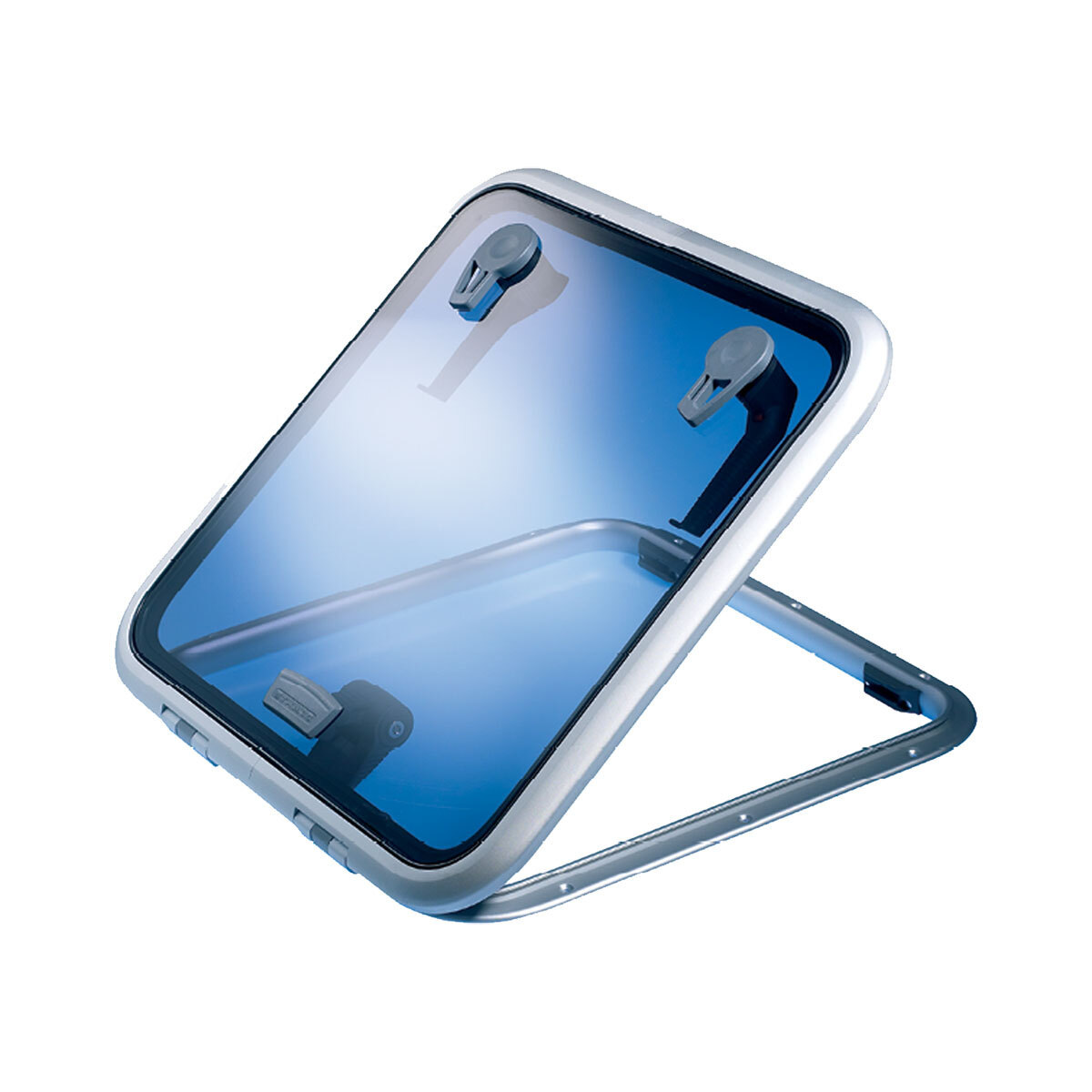

Lewmar low profile size 03 boat deck hatch with hinge.
Lewmar Low Profile Marine Hatch Range
The Lewmar Low Profile marine hatch range delivers excellent styling with a modern, snag-free design. Engineered for high performance on both power craft and yachts, the smaller configurations serve as ideal ventilation hatches above galleys or toilets. The larger models in the series provide robust, dependable foredeck solutions for small to mid-sized sail and powerboats. Each hatch incorporates Lewmar’s unique sealing system, making future acrylic lens replacement quick, straightforward, and efficient.
Key Features
• Exterior Controls: Hatch models size 30 and above come equipped with external handles.
• Easy Maintenance: Lewmar’s unique frame design permits fast and seamless replacement of acrylic lenses.
• Flexible Ventilation: Hatches can be locked fully closed or secured safely in a partial vented position.
• Adjustable Support: Integrated friction hinges hold the lid open at any angle up to 95 degrees (optional extra, not included as standard).
• Corrosion Resistance: Heavy-duty anodised aluminium frames shield against harsh salt-water environments.
• Structural Strength: Features a sleek, curved upper frame that adds structural integrity.
• Marine Certified: Fully CE Approved for Area 2A installation locations.
• Versatile Profiles: Available across standard rectangular, round, and D-Hatch layout shapes.
Ordering Replacement Acrylic Lenses
To order a replacement Acrylic Lens with a new seal, please contact our team on 07 5408 2055 with the following verified data ready:
• Overall hatch exterior frame dimensions (Width x Length x Height)
• The unique production Serial Number embossed directly into your current acrylic lens
• Your specific lid support configuration (Friction Lever style or Telescopic Stay style)
| Friction Code | With Stay | Frosted Code | Size | Outside Dim (mm) | Cut Out Dim (mm) | Radii R1 | Radii R2 | Height Z | Acrylic | Trim/Screen Kit | Colour | Screen Only |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 170050 | - | - | 00 | 281 x 281 | 211 x 211 | 72.5 | 42.5 | 25 | 8 | 170200 | White | 170240 |
| 170052 | - | - | 03 | 246 x 301 | 176 x 231 | 72.5 | 42.5 | 25 | 8 | 170202 | White | 170241 |
| 170054 | 170056 | - | 10 | 330 x 330 | 260 x 260 | 72.5 | 42.5 | 25 | 8 | 170204 | White | 170242 |
| 170058 | - | - | 20 | 272 x 417 | 202 x 347 | 72.5 | 42.5 | 25 | 8 | 170208 | White | 170246 |
| 170060 | 170062 | 170005 | 30 | 397 x 527 | 327 x 457 | 72.5 | 42.5 | 25 | 8 | 170214 | White | 170250 |
| 170064 | 170066 | 170010 | 40 | 491 x 491 | 421 x 421 | 72.5 | 42.5 | 25 | 8 | 170216 | White | 170252 |
| 170068 | - | - | 41 | 246 x 491 | 176 x 421 | 72.5 | 42.5 | 25 | 8 | 170218 | White | 170254 |
| 170070 | 170072 | - | 44 | 512 x 512 | 442 x 442 | 72.5 | 42.5 | 25 | 8 | 170220 | White | 170256 |
| 170074 | 170076 | - | 50 | 447 x 577 | 377 x 507 | 72.5 | 42.5 | 25 | 8 | 170222 | White | 170258 |
| 170078 | 170080 | - | 54 | 462 x 577 | 392 x 507 | 72.5 | 42.5 | 25 | 8 | 170226 | White | 170262 |
| 170082 | 170084 | - | 60 | 577 x 577 | 507 x 507 | 72.5 | 42.5 | 25 | 10 | 170228 | White | 170264 |
| 170160 | - | - | 65 | 560 x 675 x 560 | see drawing above | 72.5 | 42.5 | 25 | 10 | 170230 | White | 170266 |
| 170162 | - | - | 65 | 658.3 x 629 x 504.5 | see drawing above | 72.5 | 42.5 | 25 | 10 | - | - | - |
N.B. Insect screens can only be used in conjunction with matching Lewmar trim kits. Trim configurations are also available in Ivory colour variants upon special request.
Accessories
172180 Handle Kit Small – LH
SP17170280 Joining Insert
172181 Handle Kit Small – RH
SP17170292 Hinge Kit (Friction)
172196 Large Handle Kit Size 30+
SP17170268 Friction Lever
SP17170260 Catch Block
SP17170296 Hinge Caps x10
SP17170266 Large Gasket Friction Lever
SP17170376 Handle Hatch External LP MP (Pair)
(B-P-170050)
| SKU | B-P-170050 |
| Brand | LEWMAR |
