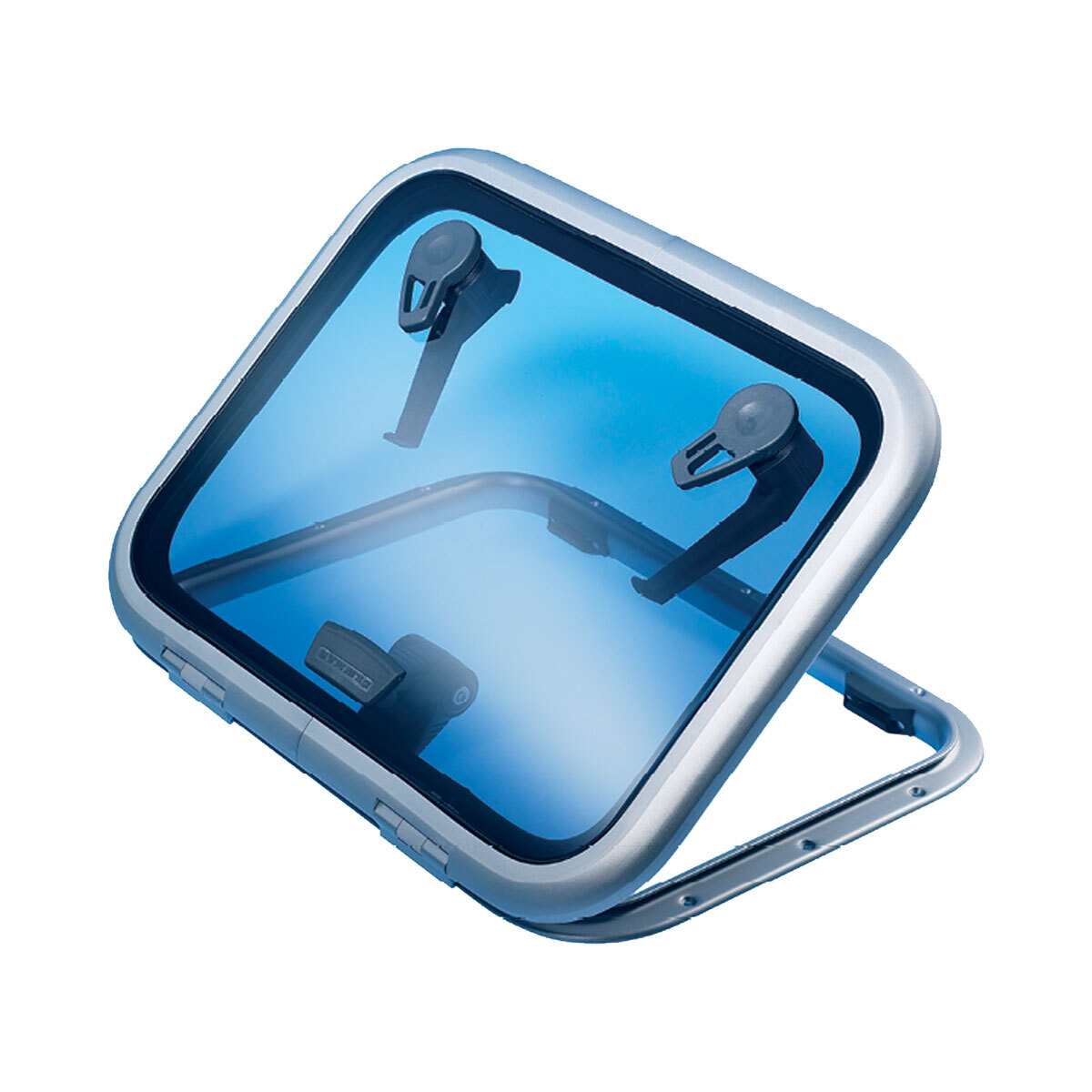

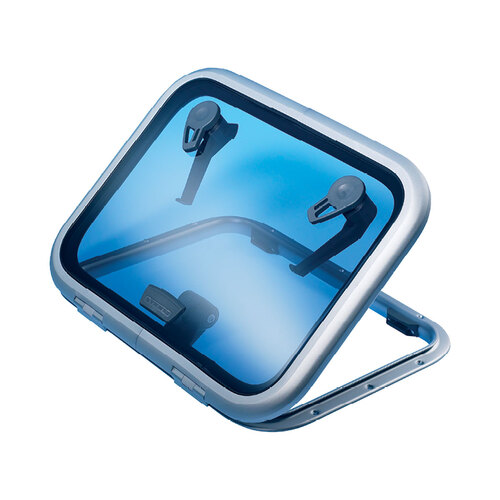

Lewmar Hatch - Size 40 - Medium Profile - Friction Hinge - 170096
Manufactured to exacting standards, the Lewmar Medium Profile range provides a smooth profile with modern lines, similar to the Low Profile range. The hatch has been designed with deeper frame sections for greater strength and thicker acrylic for durability. The Medium Profile hatches include Lewmar’s unique sealing system which allows for easy acrylic replacement if ever required. Ideal as a foredeck hatch on larger cruisers and offshore yachts.
Features
Outside handles
Ability to lock the hatch fully closed or in the vented position
Ability to quickly and easily replace acrylic lens
Friction hinges hold the lid open in any position up to 95° (optional extra not included as standard)
Anodised aluminium frame for corrosion resistance
Curved upper frame for strength as well as modern styling
CE approved to Area 2A
| Code Friction Hinge | Code with Stay | Code Frosted Lens | Size | Outside XxY LxW mm | Cut Out X1xY1 LxW mm | Radii R mm | Radii R1 mm | Height Z mm | Acrylic mm | Internal Trim Kit & Insect Screen | Internal Trim Kit Colour | Insect Screen Only to Suit | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 170094 | - | - | 30 | 398 x 528 | 327 x 457 | 78 | 42.5 | 32 | 12 | 170214 | White | 170250 | ||||||||||||
| 170096 | - | - | 40 | 492 x 492 | 421 x 421 | 78 | 42.5 | 32 | 12 | 170216 | White | 170252 | ||||||||||||
| 170098 | - | 170028 | 44 | 513 x 513 | 442 x 442 | 78 | 42.5 | 32 | 12 | 170220 | White | 170256 | ||||||||||||
| 170102 | - | - | 54 | 463 x 578 | 392 x 507 | 78 | 42.5 | 32 | 12 | 170226 | White | 170262 | ||||||||||||
| 170104 | - | 170031 | 60 | 578 x 578 | 507 x 507 | 78 | 42.5 | 32 | 12 | 170228 | White | 170264 | ||||||||||||
| 170106 | 170108 | 170033 | 70 | 698 x 698 | 627 x 627 | 78 | 42.5 | 32 | 12 | 170232 | White | 170268 | ||||||||||||
Accessories
172196 Large Handle Kit Size 30+
SP17170292 Hinge Kit (Friction)
SP17170260 Catch Block
SP17170268 Friction Lever
SP17170280 Joining Insert
SP17170296 Hinge Caps x10
SP17170266 Large Gasket Friction Lever
SP17170376 Handle Hatch External LP MP (Pair)
To order replacement Acrylic with Seal, please contact us on 07 54085205 with the following information
Hatch overall size W x L x H
Serial Number embossed in the acrylic
Friction Lever or Telescopic Stay type
N.B. Insect screens can only be used with trim kits. Trims also available in Ivory
(B-P-170094)
| SKU | B-P-170094 |
