Lewmar Pilot Hatch Size 70 Silver - 170173
Lewmar Pilot hatch, 701 x 697mm overall
Lewmar Pilot Hatch Range

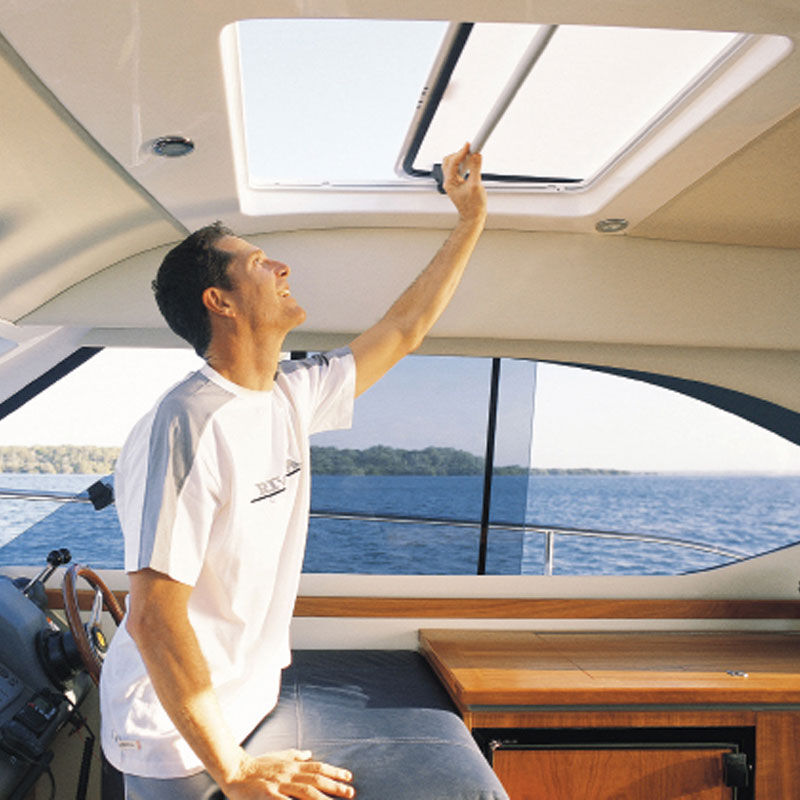

The Lewmar Pilot Hatch range has been specifically developed for applications above helm stations, cockpit roofs and flybridge areas where easy access, ventilation and weather protection are essential. Designed to complement Lewmar's Low Profile and Medium Profile hatch ranges, Pilot hatches provide a clean, modern appearance while maintaining exceptional durability and functionality.
Utilising Lewmar's proven low-friction sliding technology derived from its racing hardware systems, Pilot hatches deliver smooth operation and reliable performance in demanding marine environments. The innovative handlebar mechanism allows the hatch to open effortlessly and securely seals the hatch when closed.
Features
- Smooth sliding design for convenient ventilation and access
- Ideal for helm stations, cockpit roofs and flybridge installations
- Ergonomic opening handlebar mechanism
- Rotating handle securely seals the hatch when closed
- Low-friction track system based on Lewmar racing hardware technology
- Available in Silver or White frame finishes
- Tough 10mm acrylic panel construction
- CE Approved for Area 3 installations
- Motorised versions available on request

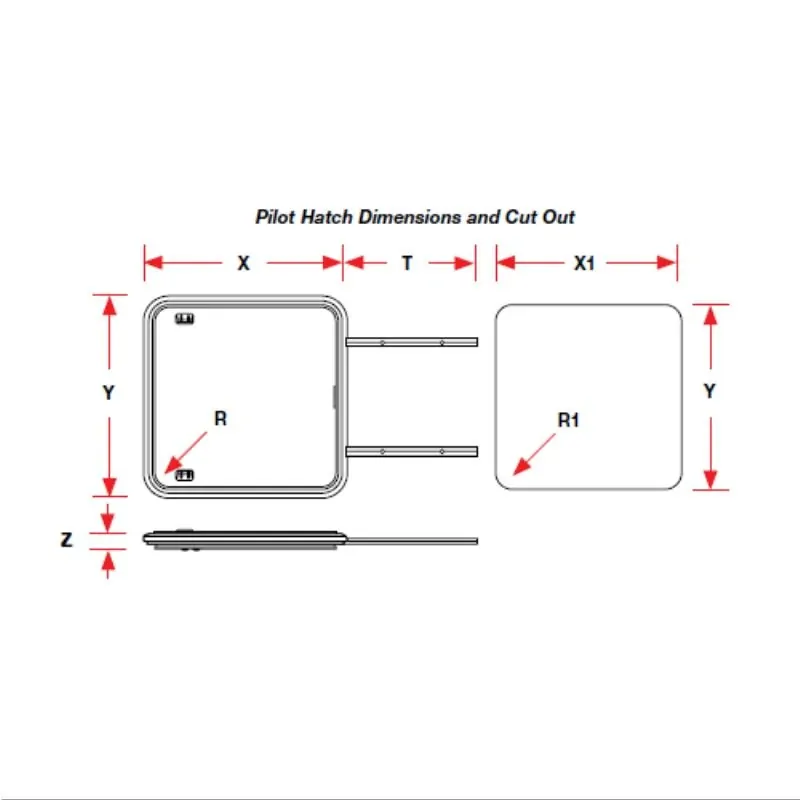

Pilot Hatch Specifications
| Code | Size | Frame Colour | Lower Frame Flange (mm) | Outside Dimensions (mm) | Cut Out Dimensions (mm) | Radii R (mm) | Radii R1 (mm) | Height (mm) | Acrylic Tint | Acrylic Thickness (mm) | Track Length (mm) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 170172 | 60 | Silver | 15 | 581 x 577 | 507 x 507 | 72.5 | 42.5 | 29 | Grey | 10 | 373 | |||||||||||
| 170173 | 70 | Silver | 15 | 701 x 697 | 625 x 625 | 72.5 | 42.5 | 29 | Grey | 10 | 485 | |||||||||||
| 170174 | 78 | Silver | 15 | 844 x 790 | 770 x 720 | 72.5 | 42.5 | 29 | Grey | 10 | 638 | |||||||||||
| 170176 | 78 | White | 15 | 844 x 790 | 770 x 720 | 72.5 | 42.5 | 29 | White | 10 | 638 |
Accessories
- SP17170241 Track Cam Block & Track Follower
Note: Motorised Pilot Hatch versions are available. Contact Wilkos Marine for availability and application advice.
