Lewmar Round Low Profile Hatch Size 18 - 170164
Round low profile hatch, 490mm diameter
Lewmar Round Low Profile Hatch Range
The Lewmar Round Low Profile Hatch range is designed specifically for foredeck applications where a smooth, snag-free profile is essential. Unlike traditional square hatches, the round design eliminates corners that can catch sails, lines and deck gear, making these hatches particularly well suited to sailing yachts and performance cruising vessels.
Featuring Lewmar's proven low-profile styling, these hatches combine sleek appearance with reliable ventilation, weather protection and durability. Constructed from marine-grade materials and CE approved for Area 2A installations, they are built to withstand demanding offshore conditions.
Features
- Round design helps prevent sails and lines snagging on corners
- Ideal for foredeck installations
- Low-profile styling reduces deck obstruction
- Marine-grade construction for long service life
- CE Approved for Area 2A applications
- Available in multiple sizes
- Compatible with optional trim kits and insect screens
- Trim kits available in White and Ivory finishes

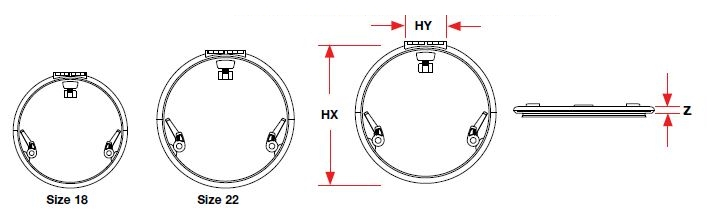

Round Low Profile Hatch Specifications
| Code | Size | Outside Diameter (mm) | Cut Out Diameter (mm) | Hinge Length HX (mm) | Hinge Width HY (mm) | Height Z (mm) | Acrylic Thickness (mm) | Trim Kit & Screen | Trim Colour | Screen Only | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 170164 | 18 | 490 | 420 | 493 | 141 | 25 | 8 | 170206 | White | 170244 | ||||||||||
| 170166 | 22 | 588 | 518 | 591 | 173 | 25 | 10 | 170212 | White | 170248 |
Spare Parts
- SP17170288 Joining Insert to suit Round & D Low Profile Hatches
Note: Insect screens require a compatible trim kit. Trim kits are available in both White and Ivory finishes.
(B-P-170164)
| SKU | B-P-170164 |
