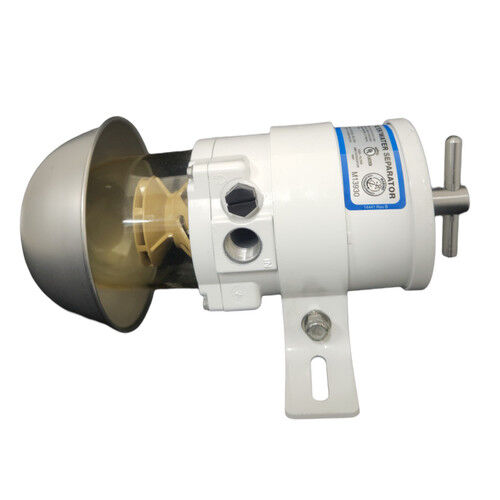

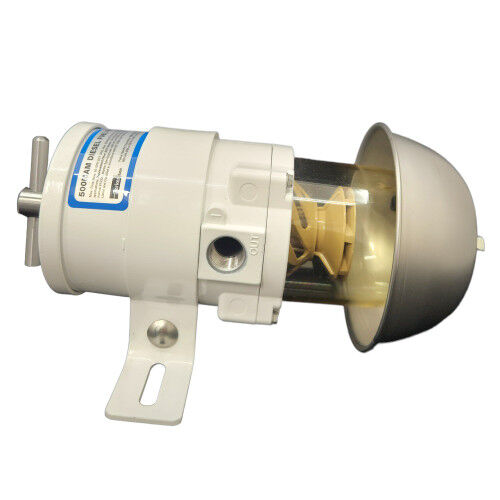

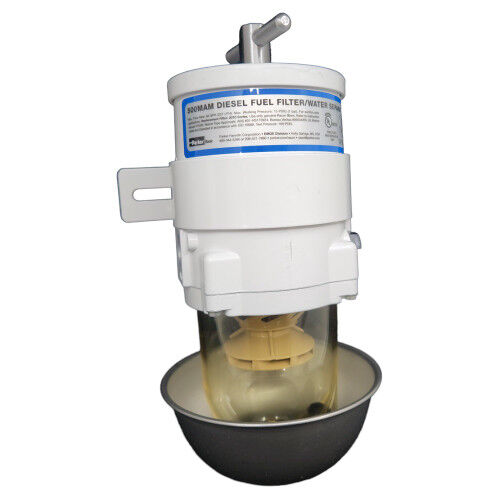

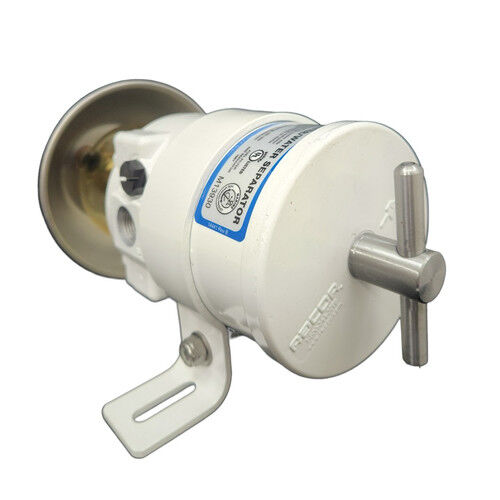

Racor 500MA2 Turbine Fuel Filter Water Separator Assembly

Racor 500MA2 Turbine Fuel Filter Water Separator Assembly

The Racor 500MA2 Turbine Fuel Filter Water Separator is a premium fuel filtration system engineered to provide maximum protection for modern marine diesel engines. Featuring Racor's proven Aquabloc® filtration technology, the 500MA2 effectively removes water, dirt, rust, algae and ultra-fine contaminants before they can reach critical fuel system components.

The Racor Turbine Series employs a three-stage filtration process that separates water and debris from fuel while maintaining optimum flow rates. Designed for marine applications, the 500MA2 includes a clear collection bowl and protective metal shield, allowing easy monitoring of water contamination while delivering long-term reliability in demanding environments.

Features

• Genuine Racor Turbine Series fuel water separator assembly
• 2-micron Aquabloc® filter element included
• Three-stage turbine filtration and water separation technology
• Clear collection bowl with protective metal shield
• Removes water and fine contaminants from diesel fuel
• Helps protect injectors, pumps and fuel system components
• Suitable for marine diesel applications
• Easy servicing and filter element replacement
• Industry-proven Turbine Series performance

Specifications

Compatibility

• Suits Racor 500 Series Turbine Fuel Water Separator assemblies
• Compatible with 2010SM (2 Micron) filter elements
• Compatible with 2010TM (10 Micron) filter elements
• Compatible with 2010PM (30 Micron) filter elements
• Suitable for marine diesel fuel filtration applications

Compatible Replacement Elements

Note: The supplied 2-micron element provides maximum contaminant removal and is ideal as a final-stage filtration solution for protecting modern high-pressure diesel fuel systems. Regular inspection and replacement of the filter element will help maintain optimum fuel system performance and reliability.
