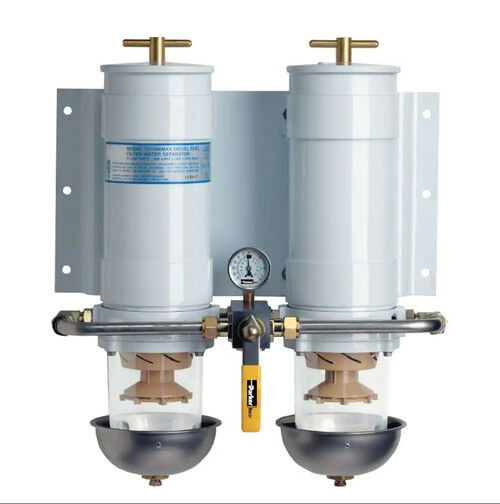

Racor 751000MAX2 Dual Turbine Fuel Filter Water Separator Assembly

Racor 751000MAX2 Dual Turbine Fuel Filter Water Separator Assembly

The Racor 751000MAX2 Dual Turbine Fuel Filter Water Separator is designed for marine diesel applications where maximum fuel cleanliness and uninterrupted engine operation are essential. Featuring Racor's advanced Aquabloc® filtration technology, this DuplexMAX™ system provides continuous filtration while allowing one filter to be serviced without shutting down the engine.

Engineered for commercial vessels, offshore cruising yachts and mission-critical marine applications, the 751000MAX2 delivers outstanding water separation and ultra-fine contaminant removal. The duplex valve arrangement allows operators to switch between filter chambers during maintenance, ensuring continuous fuel supply and reliable engine performance.

Features

• Genuine Racor DuplexMAX™ Turbine Series fuel filtration system
• Dual 2-micron Aquabloc® filter elements included
• Continuous fuel filtration during filter servicing
• Three-stage turbine filtration and water separation technology
• Exceptional removal of fine contaminants and water
• Duplex valve design allows uninterrupted engine operation
• Heavy-duty marine-grade construction
• Clear collection bowls for easy contamination monitoring
• Ideal for commercial, offshore and long-range marine applications

Specifications

Compatibility

• Suits Racor DuplexMAX™ 1000 Series fuel filtration systems
• Uses Racor 2020SM (2 Micron) replacement elements
• Uses Racor 2020TM (10 Micron) replacement elements
• Uses Racor 2020PM (30 Micron) replacement elements
• Suitable for marine diesel fuel filtration applications
• Ideal for commercial vessels and long-range cruising vessels requiring uninterrupted fuel supply

Compatible Replacement Elements

Note: The supplied 2-micron elements provide maximum contaminant removal and are ideal for protecting modern high-pressure diesel fuel systems. The DuplexMAX™ design allows one filter to remain online while the second filter is serviced, helping ensure uninterrupted operation in critical applications.
