Racor 75500MAX2 Dual 500 Series Fuel Filter Water Separator Assembly
2 micron dual fuel water separator assembly

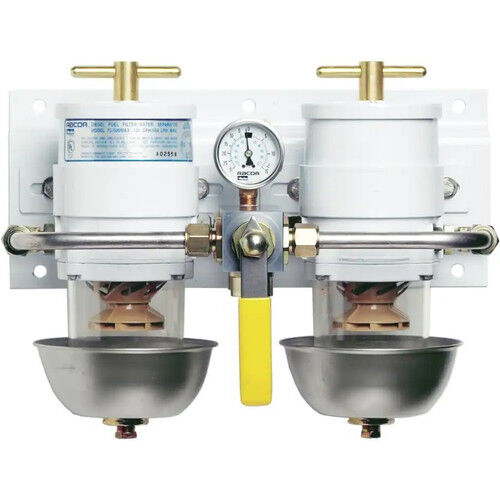

Racor 75500MAX2 Dual 500 Series Fuel Filter Water Separator Assembly
The Racor 75500MAX2 Dual Fuel Filter Water Separator is designed for marine diesel applications where continuous fuel filtration and maximum engine protection are essential. Featuring Racor's advanced Aquabloc® filtration technology, this DuplexMAX™ system allows one filter assembly to remain operational while the second filter is serviced, eliminating unnecessary engine downtime.
Built around dual Racor 500 Series turbine filter assemblies, the 75500MAX2 delivers exceptional water separation and ultra-fine contaminant removal while maintaining optimum fuel flow. The duplex valve system allows seamless switching between filter assemblies, making it ideal for commercial vessels, offshore cruisers and other mission-critical marine applications.
Features
- Genuine Racor DuplexMAX™ fuel filtration system
- Dual 2-micron Aquabloc® filter elements included
- Continuous fuel filtration during filter servicing
- Advanced three-stage turbine filtration technology
- Excellent water separation and contaminant removal
- Dual 500 Series turbine filter assemblies
- Heavy-duty marine-grade construction
- Designed for commercial and offshore applications
- Clear collection bowls for easy contamination monitoring
- Helps protect injectors, pumps and fuel system components
Specifications
| Specification | Details | |
|---|---|---|
| Part Number | 75500MAX2 | |
| Micron Rating | 2 Micron | |
| Filter Elements | 2010SM (x2) | |
| Fuel Type | Diesel | |
| Configuration | Dual / Duplex Fuel Filter System | |
| Series | Racor 500 Turbine Series | |
| Filtration Technology | Aquabloc® Three-Stage Filtration |
Compatibility
- Suits Racor DuplexMAX™ 500 Series fuel filtration systems
- Uses Racor 2010SM (2 Micron) replacement elements
- Uses Racor 2010TM (10 Micron) replacement elements
- Uses Racor 2010PM (30 Micron) replacement elements
- Suitable for marine diesel fuel filtration applications
- Ideal for commercial vessels and long-range cruising vessels requiring uninterrupted fuel supply
Compatible Replacement Elements
| Part Number | Micron Rating | |
|---|---|---|
| 2010SM | 2 Micron | |
| 2010TM | 10 Micron | |
| 2010PM | 30 Micron |
Note: The supplied 2-micron elements provide maximum contaminant removal and are ideal for protecting modern high-pressure diesel fuel systems. The DuplexMAX™ design allows one filter assembly to remain online while the second assembly is serviced, ensuring uninterrupted engine operation in critical marine applications.
(A-R-75500MAX2)
| SKU | A-R-75500MAX2 |
| Model # | 75500MAX2 |
| Brand | Racor |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
| Shipping Length | 0.100m |
