Cable Clamps and Shims

Calculate Shipping

Description
Specifications

Used to fasten the outer casing of 33, 43 and 64 series control Cableswith clamp type hubs. Available as separate components or as clamp and shim assemblies. Passivated steel construction, 309782 only is manufactured of stainless steel.

Code	Materials	Cable Series	A mm	B mm	C mm	D mm	E mm
Clamps

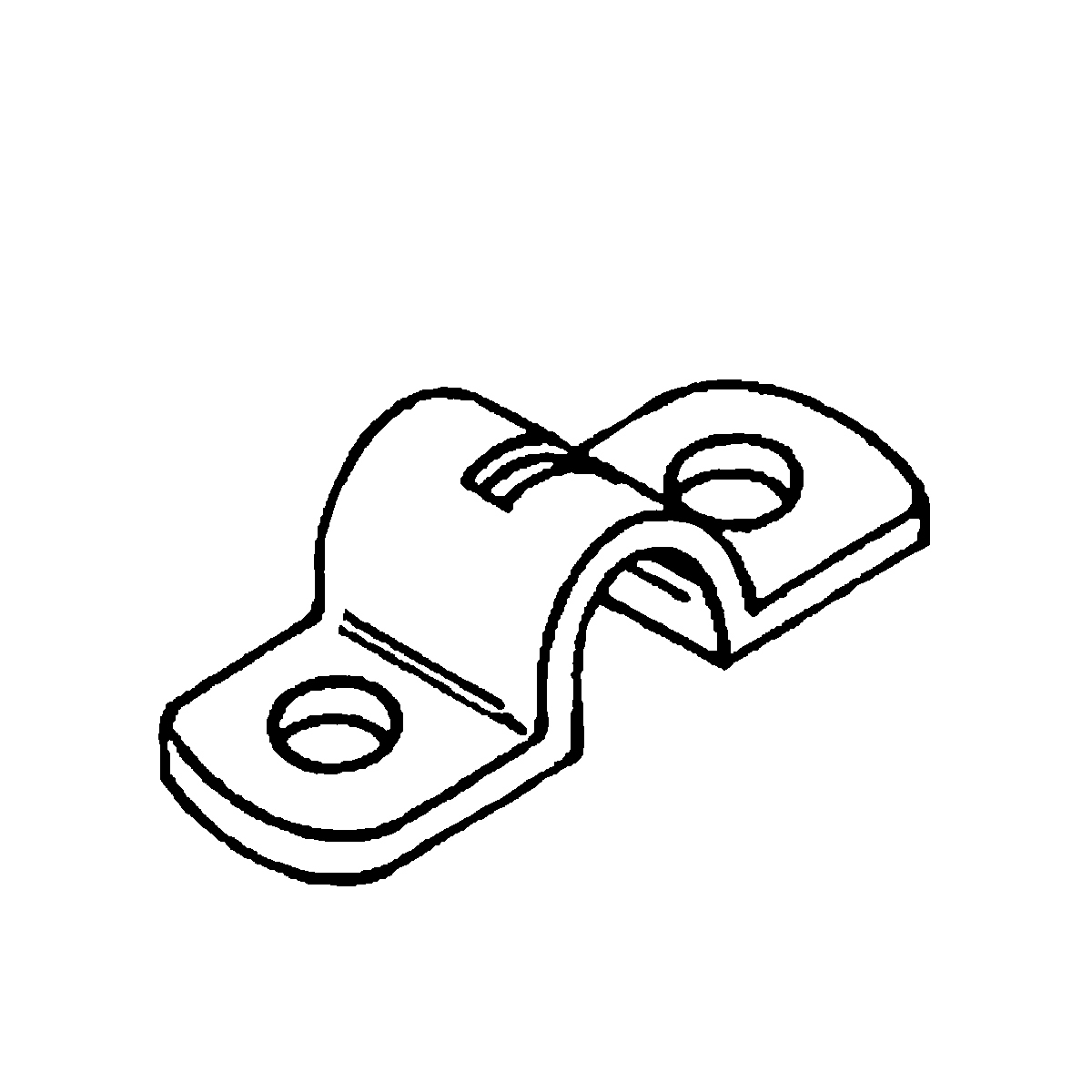

309780	Steel	33	9.5	25	38	13	5
309782	S/S	33	9.5	22	33	13	5
309784	Steel	43	12.7	25	38	13	5
Shims
309800	Steel	33 & 43		25	38	13	5
Clamps & Shims
309814	Steel	33	9.5	25	35	13	5
309815	S/S	33	9.5	25	35	13	5
309816	Steel	43	12.7	25	35	13	5
309818	Steel	63	14.3	32	45	19	7
