DF-100 - Marine Engine Mount EM-DF-100

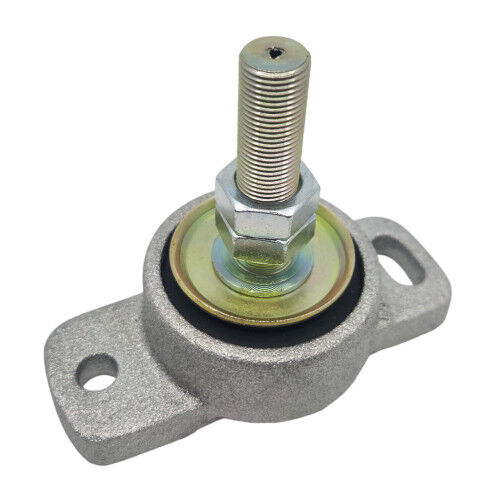

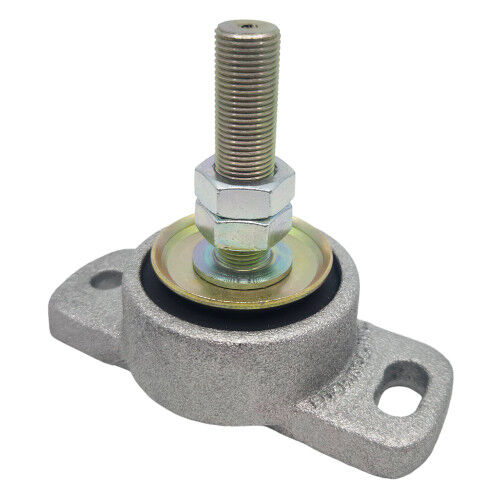

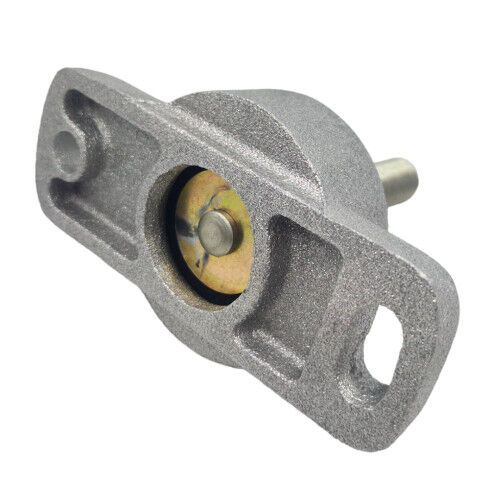

Dual Flex Marine Mount - DF-100

Sugested maximum engine weight per mount with 4 mounting feet: Up to 96kg per mount.

DF-100

Length -127mm
Width - 69mm
Overall height - 101mm
Minimum mounting height - 48mm
Mounting bolt centres - 102mm
Stud size - 5/8"
Weight rating per mount - 96kg
Weight rating per set - 385kg

Dual Flex DF-100 Engine Mounts feature:

Heavy duty cast aluminum alloy construction with a durable oil and fuel resistant elastomer element for long life.

Easy installation with threaded 5/8” stud for vertical height adjustment, comes complete with leveling and locking nuts.

Aluminum base cast with one 3/8” mounting hole and one slotted hole for either 3/8” bolts or lag screws, on 4” centers.

All steel parts are zinc dichromate plated for corrosion resistance.
