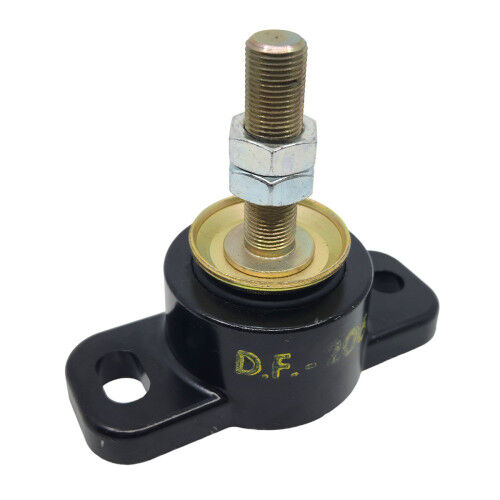

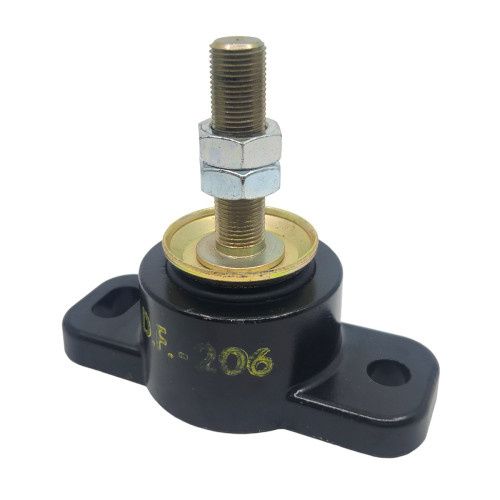

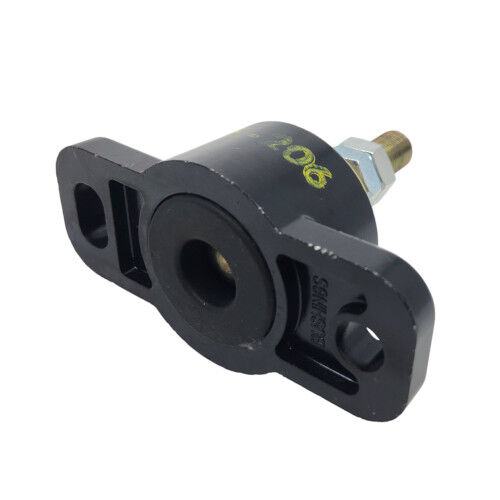

DF-206 - Marine Engine Mount EM-DF-206

Dual Flex Marine Mount - DF-206

The Dual Flex DF-206 Engine Mount recommended for all 4 and 6 cylinder, and V8 petrol powered engines up to 362kg.

Sugested maximum engine weight per mount with 4 mounting feet: Up to 96kg per mount.

DF-206

Length -132mm
Width - 68mm
Overall height - 114mm
Minimum mounting height - 62mm
Mounting bolt centres - 103mm
Stud size - 5/8"
Weight rating per mount - 90.5kg
Weight rating per set - 362kg

This mount features:

Heavy duty aluminum 356 - T6 alloy construction with lip incorporated in the top of the casting to resist the upward pull of the engine - coated black to resist corrosion.

Durable oil and fuel resistant elastomer element.

Fail safe design - bottom pad prevents excessive impact.

Easy installation with 5/8” threaded stud for vertical height adjustment.

Aluminum base cast with one 1/2” mounting hole and one slotted hole for either 1/2” bolts or lag screws on 4” centers.

Mounts come complete with leveling, and locking nuts.

All steel parts are zinc trivalent plated for corrosion resistance.
