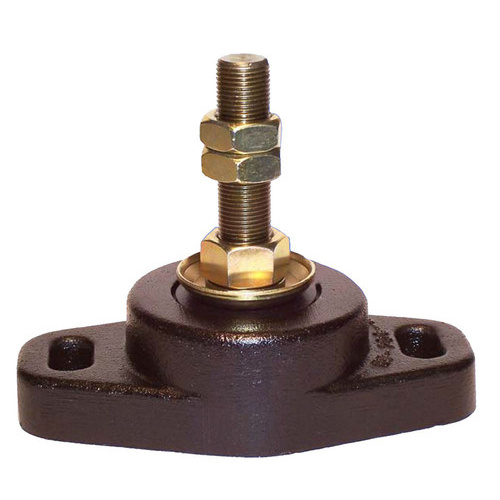

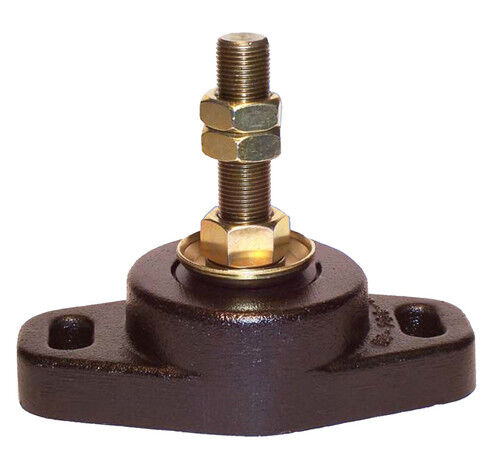

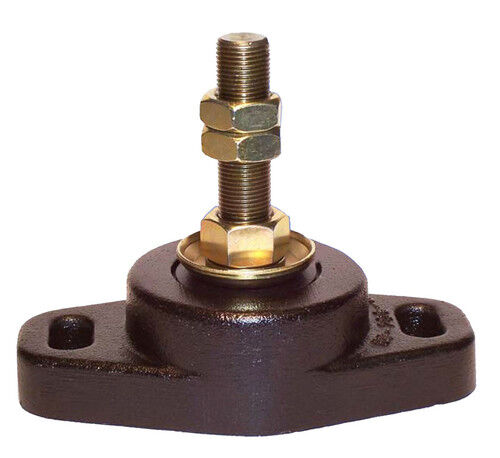

DF-238-M1 - Marine Engine Mounts EM-DF-238-M1

Dual Flex Marine Mount - DF-238-M1 Series

Suitable for Caterpillar, Cummins, Detroit Diesel & John Deere engines

Cat - 3208/3304B

Cummins - V-504/555-M

Detroit Diesel - 6.2/4-53/8.2/6V53/6V53T/471N

John Deere - 7.6 & 8.1L

The Dual Flex DF-238-M1 Series of heavy duty mountings is designed principally for diesel engines in the 816 – 998kg range.

Sugested maximum engine weight per mount with 4 mounting feet: Up to 249kg per mount.

DF-238-M1

Length -164mm
Width - 84mm
Overall height - 129mm
Minimum mounting height - 67mm
Mounting bolt centres - 128mm
Stud size - 3/4"
Weight rating per mount - 249kg
Weight rating per set - 998kg

Base casting features heavy duty aluminum alloy construction, with lip incorporated in the top of the casting to resist the upward pull of the engine – coated black to resist corrosion.

Durable oil and fuel resistant elastomer element.

Fail safe design - bottom pad prevents excessive impact. Easy installation with 3/4” threaded stud for vertical height and slotted casting for horizontal adjustment.

Mounts come complete - with three nuts: leveling, locking and secondary lock.

Aluminum base casting with 1/2” slotted holes for 1/2” bolts or lag screws.
