DF-237-M1 - Marine Engine Mounts EM-DF-237-M1

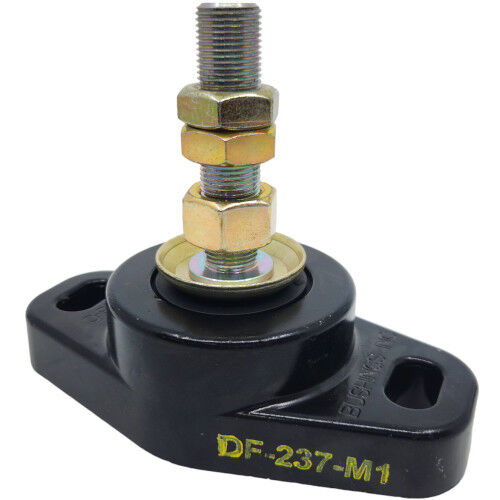

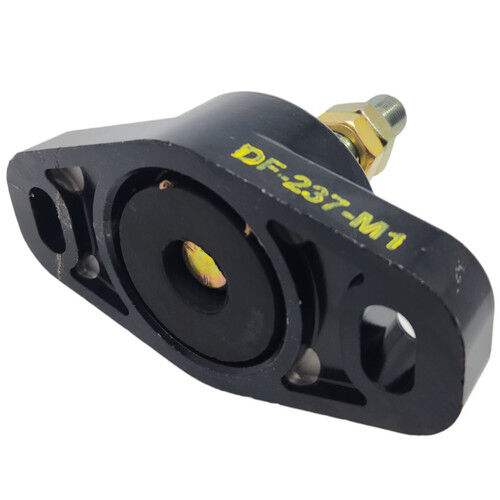

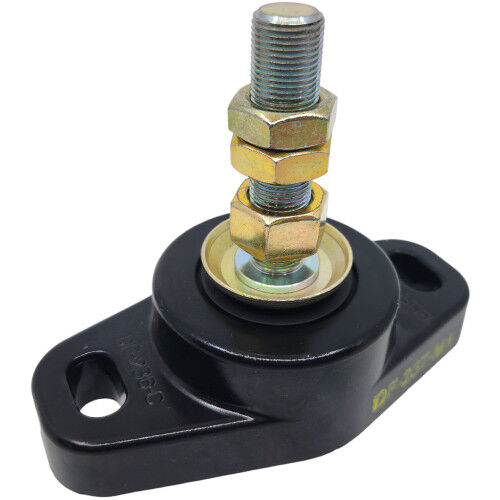

Dual Flex Marine Mount - DF-237-M1 Series

Suitable for Ford, Iveco & John Deere engines

Ford - DSD-681N/T

Iveco - 8061SM05/06/8061SRM 05 & 06 & 27

John Deere - 6.8L

The Dual Flex DF-237-M1 Series of heavy duty mountings is designed principally for diesel engines in the 680 – 816kg range.

Sugested maximum engine weight per mount with 4 mounting feet: Up to 204kg per mount.

DF-237-M1

Length -164mm
Width - 84mm
Overall height - 129mm
Minimum mounting height - 67mm
Mounting bolt centres - 128mm
Stud size - 3/4"
Weight rating per mount - 204kg
Weight rating per set - 816kg

Base casting features heavy duty aluminum alloy construction, with lip incorporated in the top of the casting to resist the upward pull of the engine – coated black to resist corrosion.

Durable oil and fuel resistant elastomer element. Low profile mount - requires only 2 5/8” minimum clearance from casting base to top of leveling nut.

Fail safe design - bottom pad prevents excessive impact. Easy installation with 3/4” threaded stud for vertical height and slotted casting for horizontal adjustment.

Mounts come complete - with three nuts: leveling, locking and secondary lock.

Aluminum base casting with 1/2” slotted holes for 1/2” bolts or lag screws.

All steel parts are zinc trivalent plated for corrosion resistance.
