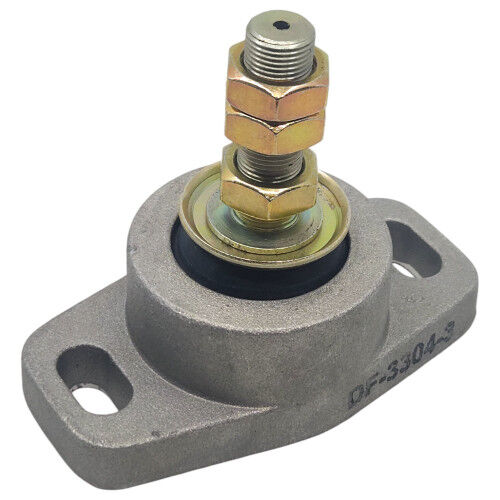

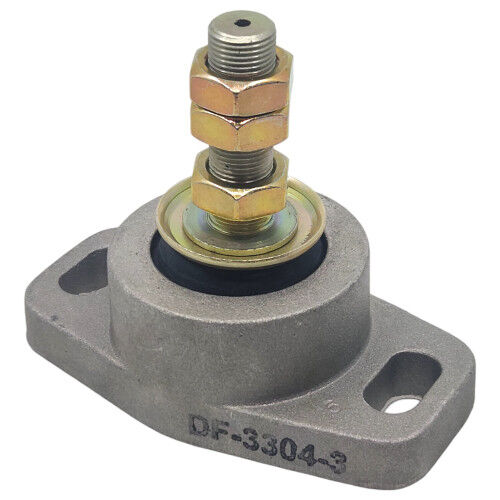

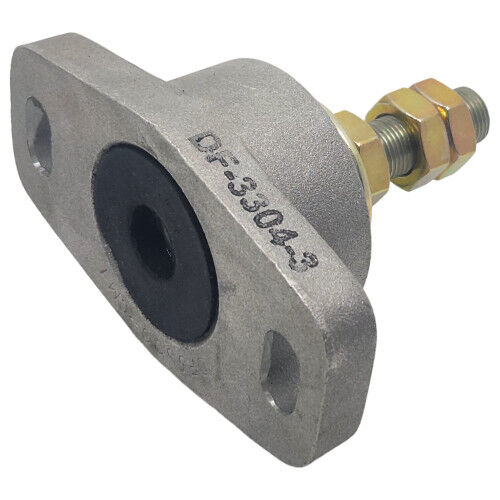

DF-3304-3 - Marine Engine Mount EM-DF-3304-3

Dual Flex Marine Mount - DF-3300 Series - DF-3304-3

Suitable for Caterpillar, Isuzu, Volvo & Yanmar engines:

Cat - 3208 and 3304B

Isuzu - QD40/60

Volvo - TMD31, TAMD31 and MD32A

Yanmar - 4LH Series

Sugested maximum engine weight per mount with 4 mounting feet: Up to 113.5kg per mount.

DF-3304-3

Length -146mm
Width - 81mm
Overall height - 124mm
Minimum mounting height - 73mm
Mounting bolt centres - 114mm
Stud size - 3/4"
Weight rating per mount - 113.5kg
Weight rating per set - 454kg

The Dual Flex DF-3300 Series features:

Heavy duty aluminum alloy construction with lip incorporated in the top of the casting to resist the upward pull of the engine.

Durable oil and fuel resistant elastomer element raised above top of the casting to accommodate engine mounting angles.

Fail safe design - bottom pad prevents excessive impact.

Easy installation with threaded stud for vertical height and slotted casting for horizontal adjustment.

Stud comes with with three nuts. Leveling, locking and secondary lock.

Aluminum base cast with 1/2” slotted holes for 1/2” bolts or lag screws.

All steel parts are zinc trivalent plated for corrosion resistance.

Available with 3/4” stud in three size ratings dependant on engine/powertrain package weight.
