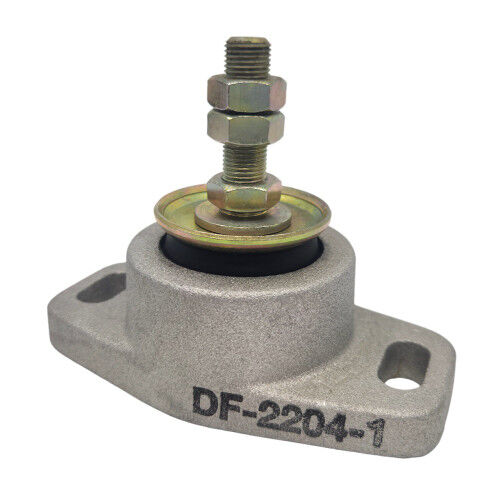

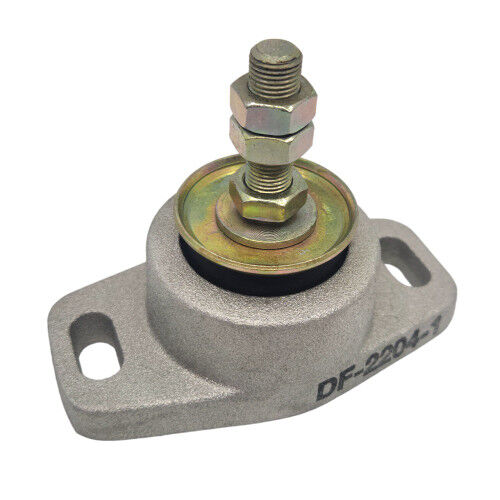

DF-2204-1 - Marine Engine Mount EM-DF-2204-1

Dual Flex Marine Mount - DF-2200 Series - DF-2204-1

Sugested maximum engine weight per mount with 4 mounting feet: Up to 17kg per mount.

DF-2204-1

Length -128mm
Width - 69mm
Overall height - 98mm
Minimum mounting height - 59mm
Mounting bolt centres - 103mm
Stud size - 1/2"
Weight rating per mount - 17kg
Weight rating per set - 68kg

Dual Flex DF-2200 Series Features:

Heavy duty aluminum alloy construction with lip incorporated in the top of the casting to resist the upward pull of the engine.

Durable oil and fuel resistant elastomer element raised above top of the casting to accommodate engine mounting angles.

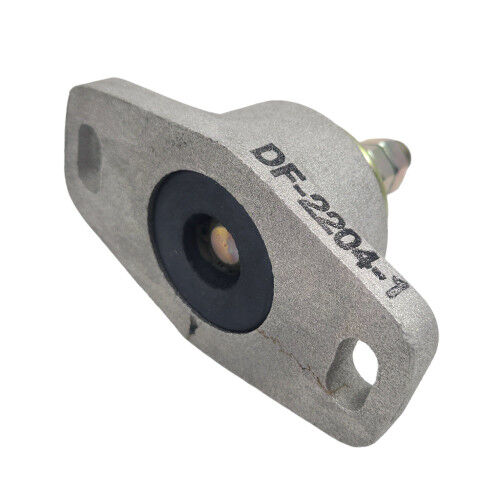

Fail safe design - bottom pad prevents excessive impact.

Easy installation with threaded stud for vertical height and slotted casting for horizontal adjustment.

Stud comes with three nuts. Leveling, locking and secondary lock.

Aluminum base cast with 3/8” slotted holes for 3/8” bolts or lag screws.

All steel parts are zinc dichromate plated for corrosion resistance.
