DF-9106 - Marine Engine Mounts EM-DF-9106

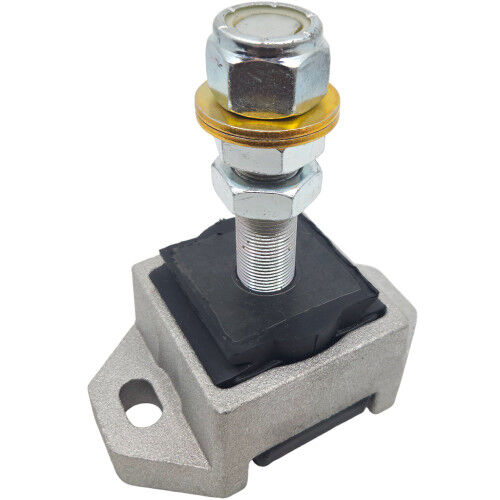

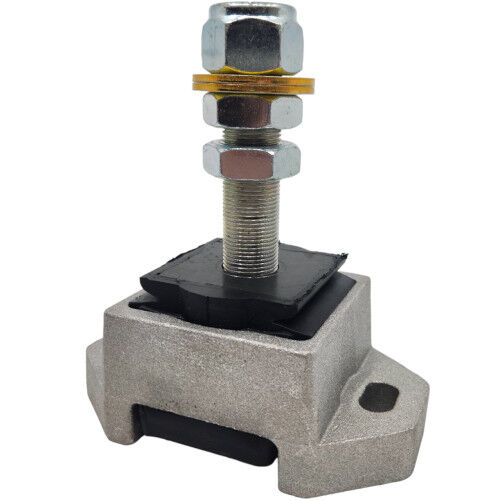

Dual Flex Marine Mount - DF-9106

Suitable for Caterpillar & Cummins Diesel engines

Cat - 3116, 3126, C7 and C9

Cummins - 6CTA, QSL, QSC and QSB 6.7

The DF-9106 Engine Isolator Mount is specifically designed for In-Line Six Cylinder Diesel configurations in the 300 - 485 Horsepower range.

Sugested maximum engine weight per mount with 4 mounting feet: Up to 272kg per mount.

DF-9106

Length -165mm
Width - 97mm
Overall height - 183mm
Minimum mounting height - 98mm
Mounting bolt centres - 127mm
Stud size - 1"
Weight rating per mount - 272kg
Weight rating per set - 1088kg

This mount is a proven design developed to absorb the angular prop thrust loads exerted at peak torque minimizing forward angular movement as well as side to side movement in rough seas.

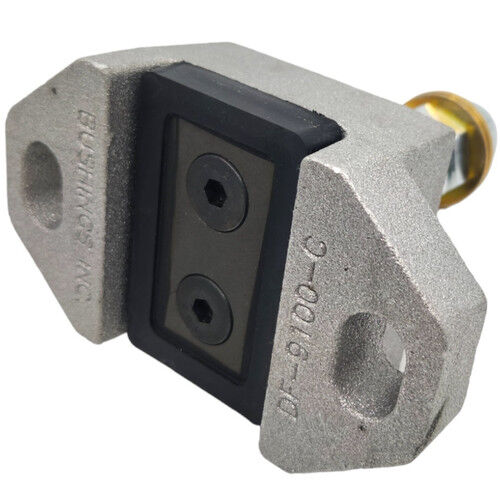

Features a heavy duty aluminum casting - with durable oil and fuel resistant elastomer element.

Low profile mount - requires only 3 1/2” minimum clearance from base to top of leveling nut.

Mount comes complete with three nuts: leveling, locking and full secondary lock, plus two washers.

Easy installation with full 1” threaded stud for vertical height adjustment and aluminum base cast with 1/2” slotted mounting holes for 1/2” bolts or lag screws on 5” centers.

Studs, nuts and washers zinc trivalent plated for corrosion resistance.
